How to Replace a Thermocouple in Your ILVE Range

A faulty thermocouple can prevent your ILVE gas burner from staying lit. The thermocouple is a safety device that detects whether a flame is present and shuts off gas if not. Replacing it is a straightforward process with the right tools.

A faulty thermocouple can prevent your ILVE gas burner from staying lit. The thermocouple is a safety device that detects whether a flame is present and shuts off gas if not. Replacing it is a straightforward process with the right tools.

This guide walks you through how to safely and correctly replace the thermocouple on your ILVE range.

Tools Required

  • Phillips screwdriver
  • T10 Torx screwdriver
  • 8mm socket wrench
  • Replacement ILVE thermocouple
  • Clean workspace

Step-by-Step Replacement Process

  1. Remove the Grates and Burners
    • Take off all cooktop grates and burner caps to access internal components.

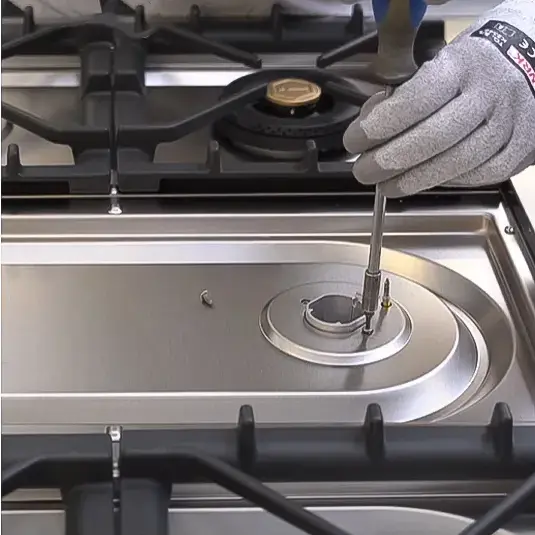

  2. Unscrew the Drip Tray
    • Using a Phillips and T10 Torx screwdriver, remove the screws holding the drip tray in place and lift it off.
  3. Unscrew the Thermocouple from the Cup
    • Use an 8mm socket wrench to unscrew the thermocouple from its mounting cup.
  4. Disconnect the Thermocouple from the Valve
    • Gently pull the thermocouple wire out from the gas valve connection.

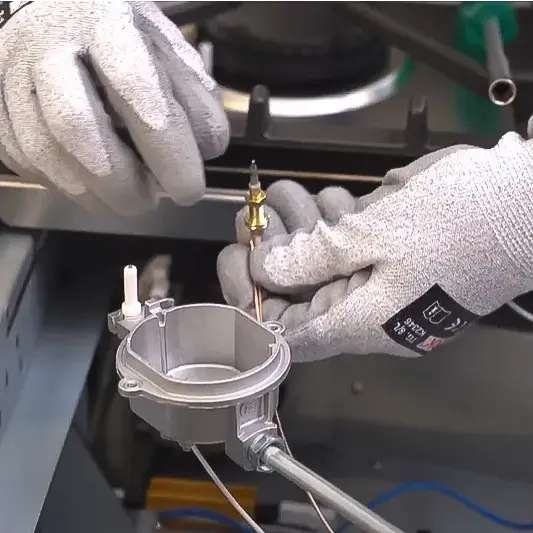

  5. Insert the New Thermocouple
    • Slide the new thermocouple into the valve slot, ensuring it fits securely.
  6. Secure the Thermocouple to the Cup
    • Use the 8mm wrench to tighten the new thermocouple into the mounting cup.
  7. Reinstall the Drip Tray
    • Place the drip tray back and screw it into position with the original fasteners.
  8. Replace the Burners and Grates
    • Reassemble the cooktop by returning the burners and grates to their original positions.

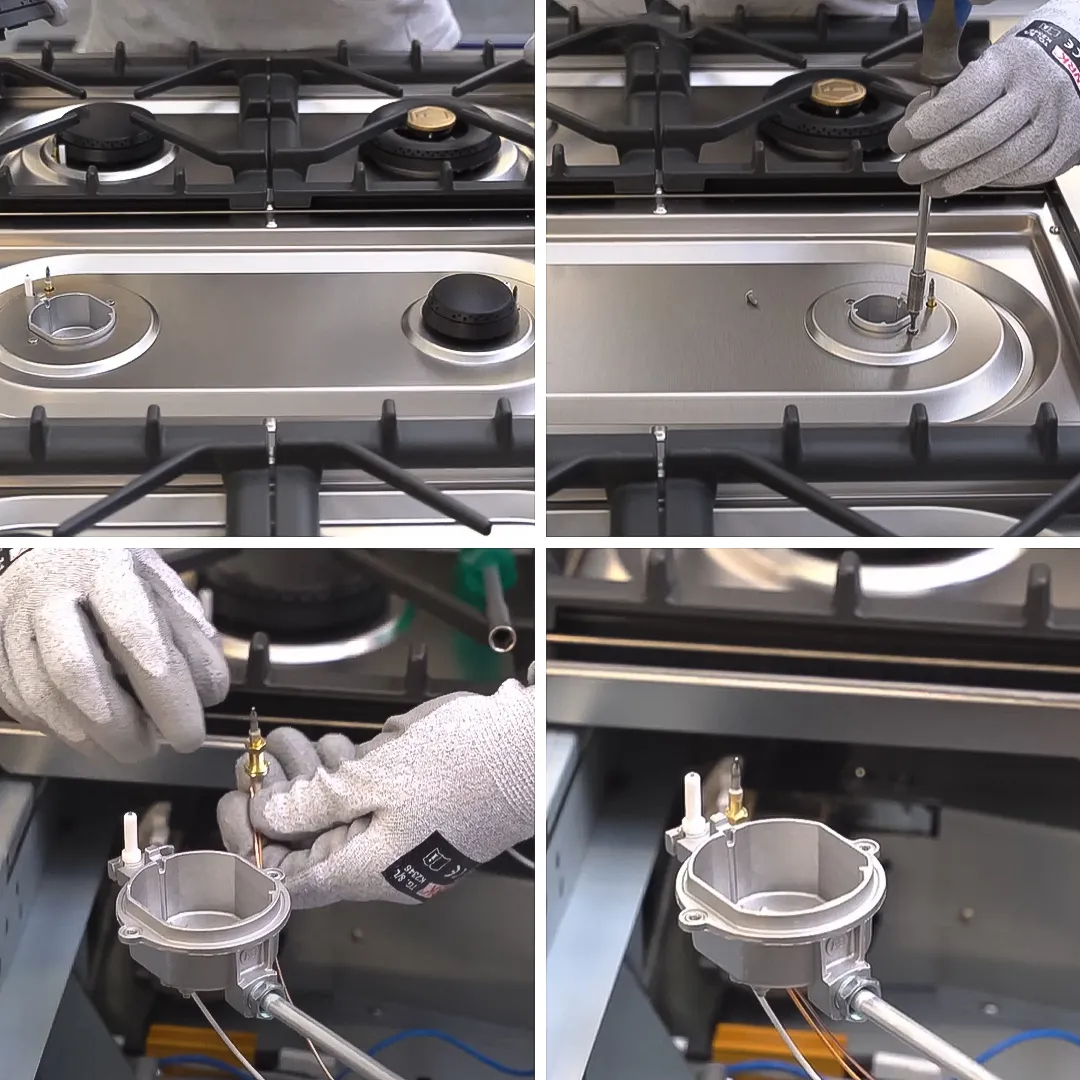

How to Replace a Thermocouple body 1x1 1

Final Recommendations

  • Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
  • Always hire a licensed professional for gas and electrical installations.
  • Register your ILVE Panoramagic online to activate your warranty and receive product support.

Need further assistance? Visit us.ilve.com or contact our support team.

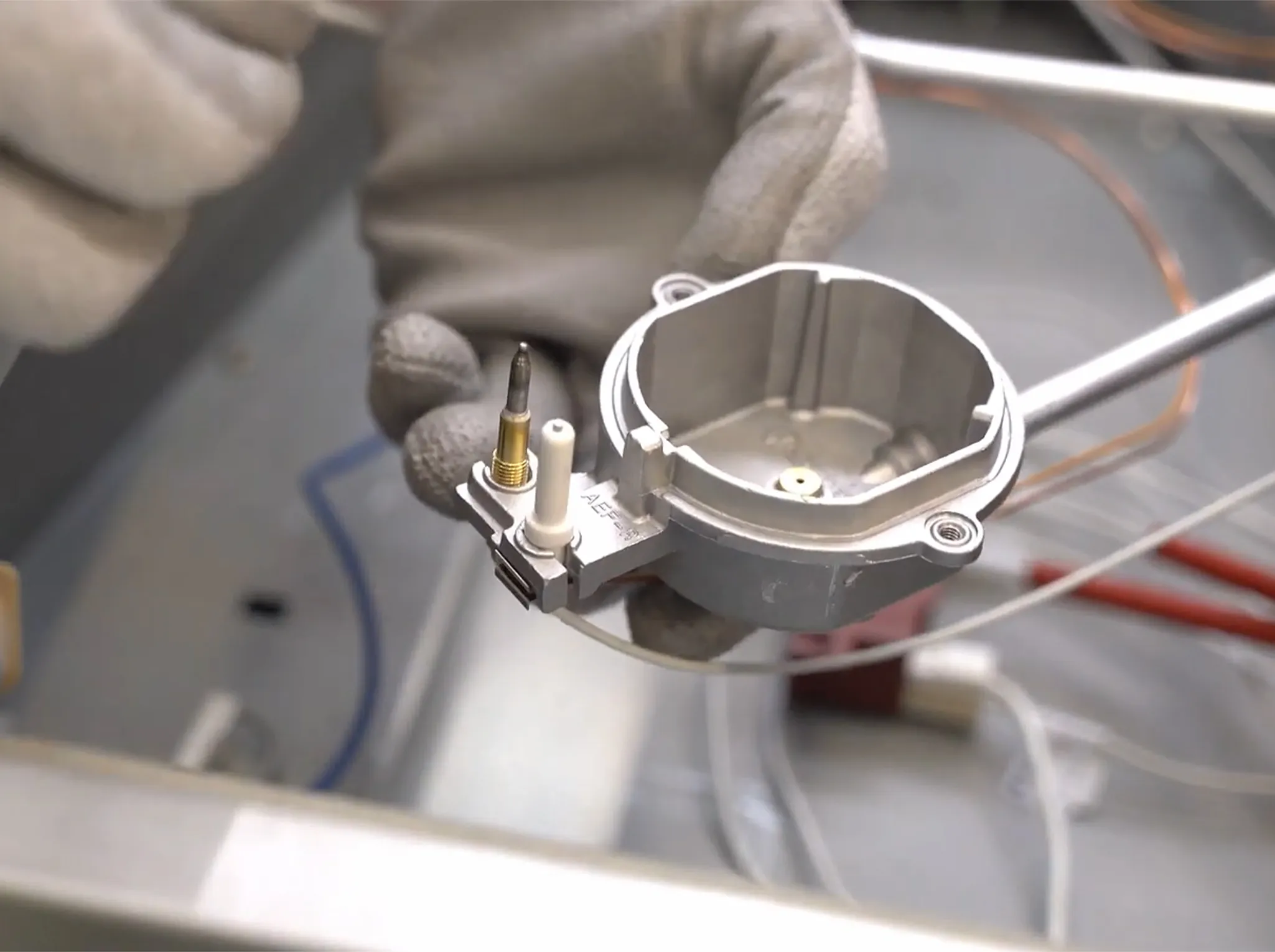

How to Replace a Thermocouple feat1
