How to Replace a Thermostat on Your ILVE Range
If your oven is no longer heating accurately or maintaining temperature, the thermostat may need replacement. This guide will walk you through replacing the thermostat in your ILVE range safely and correctly using basic tools.
If your oven is no longer heating accurately or maintaining temperature, the thermostat may need replacement. This guide will walk you through replacing the thermostat in your ILVE range safely and correctly using basic tools.
This task is best suited for experienced DIYers or service professionals, as it involves working with electrical components.
Tools Required
- Phillips screwdriver
- T10 Torx screwdriver
- New ILVE-compatible thermostat
- Clean workspace
- Gloves (optional)

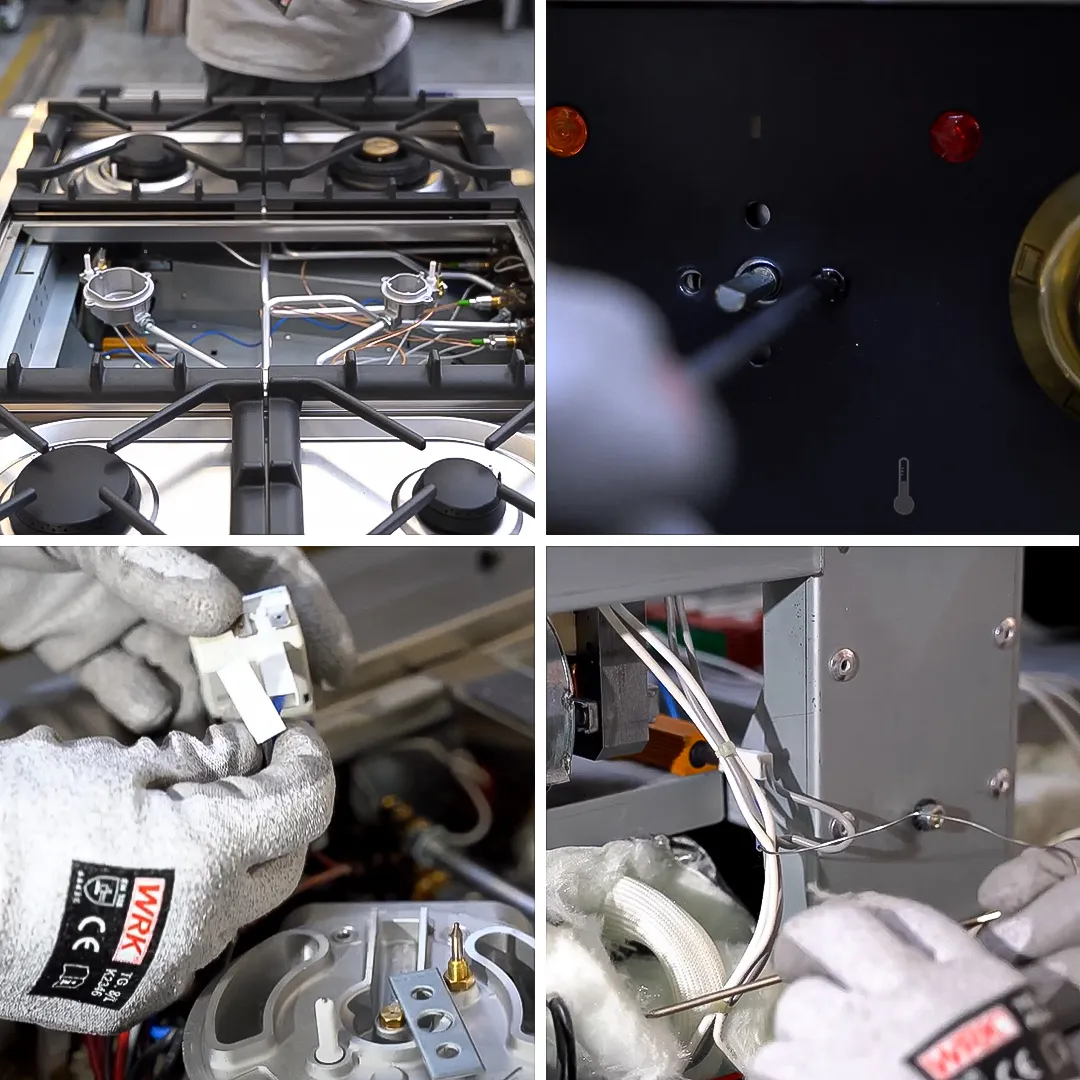

Step-by-Step Replacement Process
- Remove the Grates and Burners
- Lift off the cooktop grates and burner caps to access the surface.

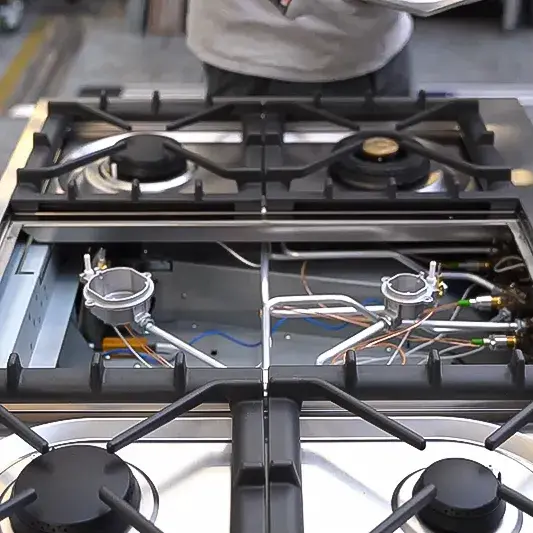

- Unscrew the Drip Tray
- Using a Phillips and T10 Torx screwdriver, remove the screws securing the drip tray.
- Remove the Thermostat Knob
- Gently pull the knob off the thermostat shaft.

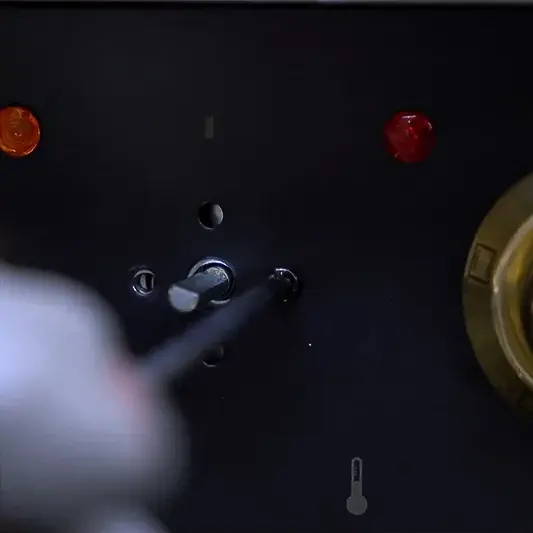

- Unscrew the Thermostat from the Control Panel
- Remove the mounting screws holding the thermostat in place.

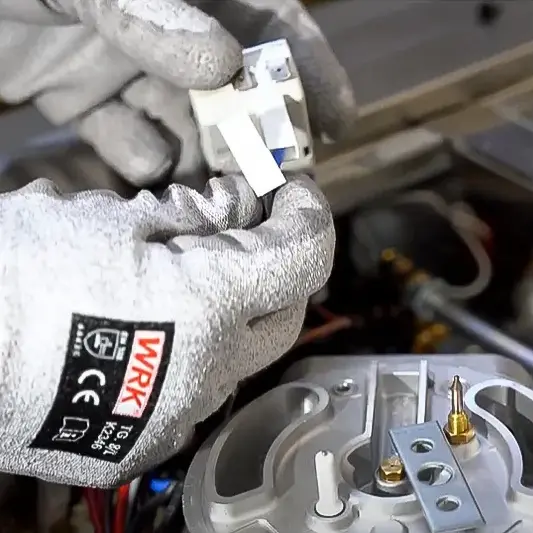

- Disconnect the Wires
- Carefully disconnect the two wires from the back of the thermostat.

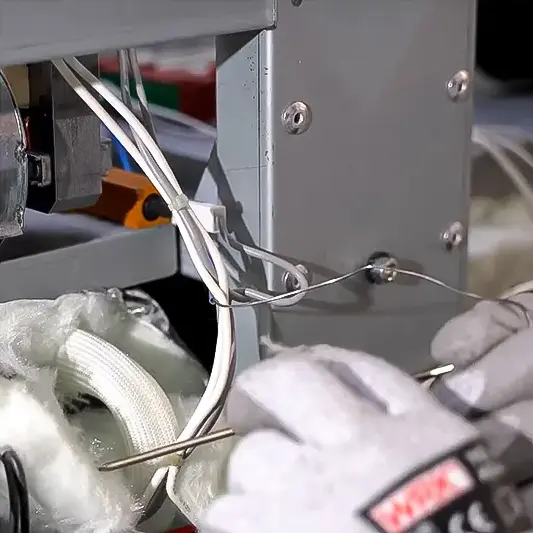

- Unhook the Thermostat Bulb from Inside the Oven
- Open the oven door and detach the sensor bulb from its clips.
- Slide Out the Thermostat
- Carefully remove the entire thermostat unit from the back of the appliance.

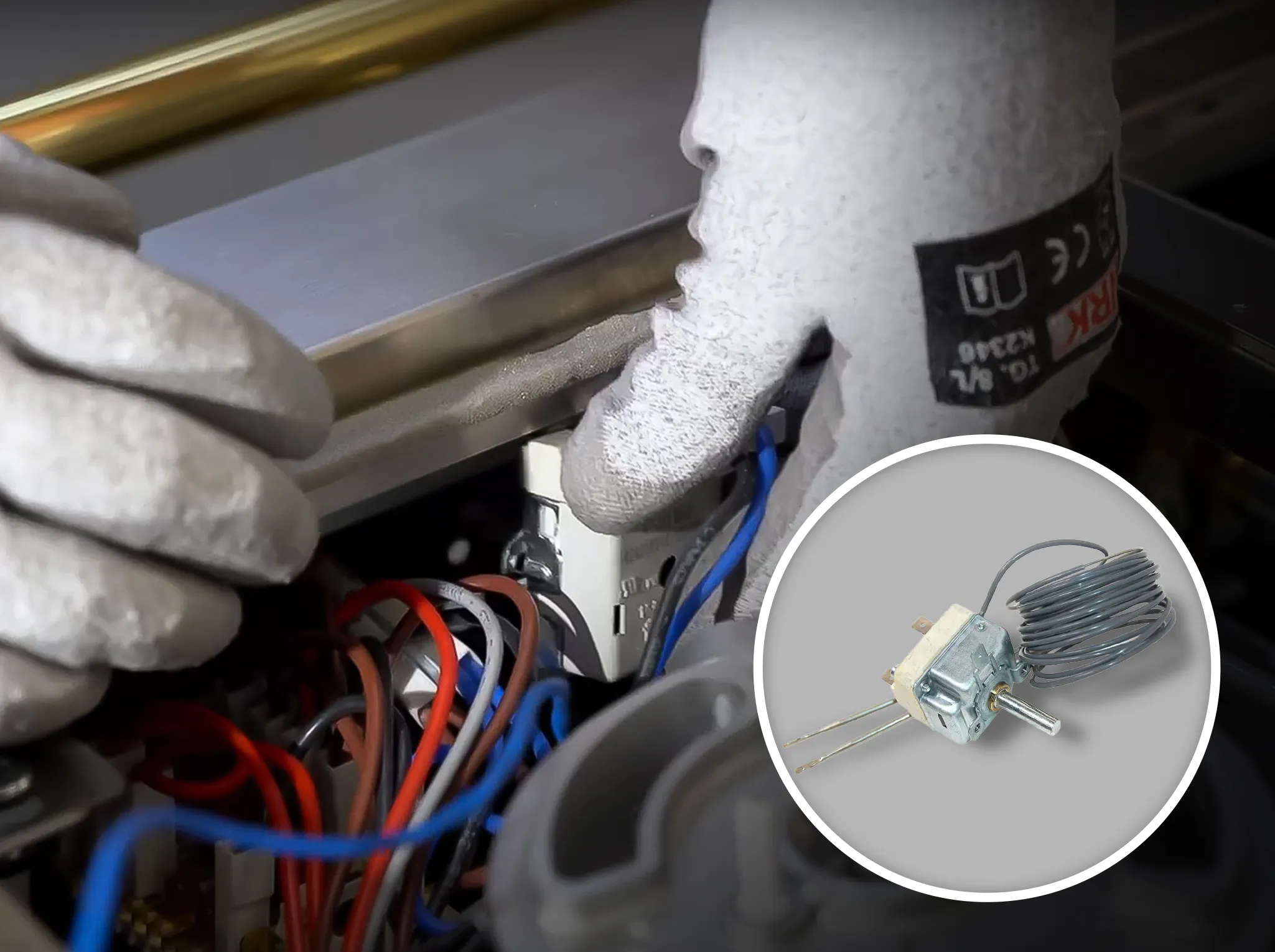

- Install the New Thermostat and Reconnect the Wires
- Insert the replacement thermostat and connect the two wires as originally configured.
- Secure the Thermostat with Screws
- Reattach the thermostat to the control panel using the original screws.
- Insert the New Thermostat Knob
- Slide the new or original knob back onto the shaft.
- Reposition the Thermostat Bulb
- Hook the bulb securely back into place inside the oven cavity.
- Reinstall the Drip Tray
- Replace the drip tray and secure it with screws.
- Replace the Burners and Grates
- Reassemble the cooktop by returning the burners and grates to their original positions.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Panoramagic online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
