How to Replace an Oven Door on the ILVE Majestic Range
Replacing the oven door on your ILVE Majestic range requires careful handling and a few key steps to ensure the door is installed correctly and safely. Whether you’re upgrading or performing maintenance, this guide walks you through the full process.
This replacement should ideally be handled by qualified personnel, especially when working with hinge tension.
Tools Required
- Pliers
- Hollow tube or hinge tool (recommended for hinge tension release)
- Replacement ILVE Majestic oven door
Step-by-Step Replacement Process

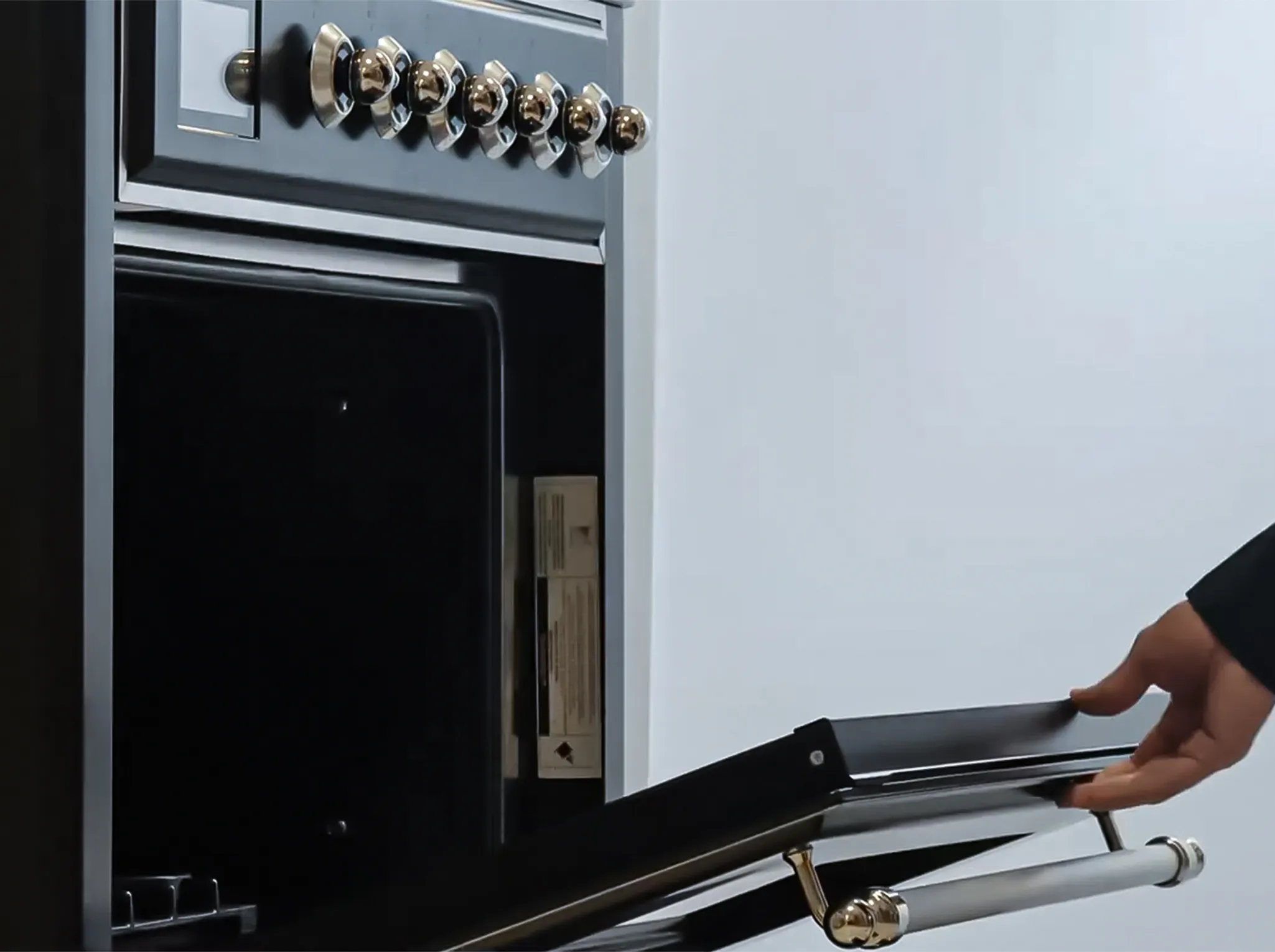

- Open the Door to a 90-Degree Angle
- This gives you full access to the hinge hooks.
- Release the Two Hooks on the Hinges
- Use your hand or a tool to unhook the safety catches on each hinge.
- Remove the Old Door
- Carefully lift the door off the hinges and set it aside.
- Open the Hinges Using a Tool (Qualified Personnel Only)
- Use a hollow tube or similar tool to carefully extend and open the hinges for safe engagement.
- Engage the Hooks
- Once the hinges are prepared, engage the safety hooks again.
- Slide the New Door into the Guides
- Align the hinge arms of the new door with the guide slots on the oven.
- Fully Open the Door
- Open the new door completely to finalize alignment.
- Secure the Hooks with Pliers
- Use pliers to firmly lock the hinge hooks in place.
- Close the Door
- Gently close the oven door to complete the installation.
- ooktop grates, and burners.
- Open the Door to a 90-Degree Angle
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Range online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
Step 1: Fully Extend the warming drawer, then open the oven door.

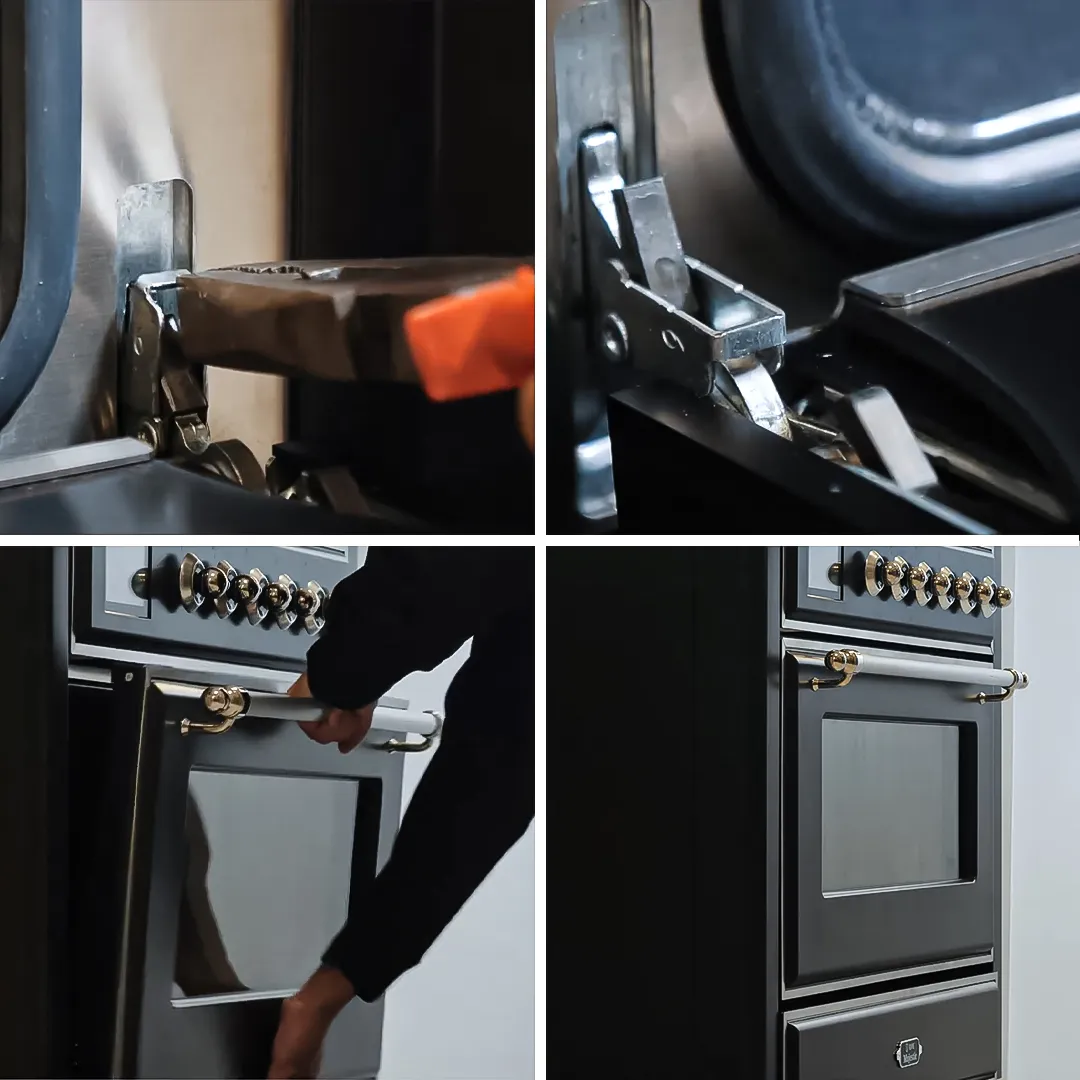

Step 2: with a pair of pliers, pull both door locks toward the oven door.
Step 3: Raise the oven door to approximately a 45-degree angle, and then lift it up and towards you. There should be little to no resistance.
Step 4: With the same angle and motion you used when removing the door, place your new oven door into its designated slots.
Step 5: Making sure the storage door is fully extended, pull the oven door completely down.
Step 6: using your pliers, Push the oven door locks toward the range until they are securely latched.
Step 7: If our oven door smoothly opens and closes with no resistance, you have properly installed it.
