How to replace tangential fan of your ILVE Majestic, Nostalgie & Professional Plus Range

Over time, the tangential (cooling) fan in your ILVE range may need to be replaced due to wear or noise. This step-by-step guide walks you through the correct procedure to replace the tangential fan motor safely and correctly. Whether you’re a service technician or a confident DIYer, this guide is designed to ensure the process is smooth and precise.

Over time, the tangential (cooling) fan in your ILVE range may need to be replaced due to wear or noise. This step-by-step guide walks you through the correct procedure to replace the tangential fan motor safely and correctly.

Whether you’re a service technician or a confident DIYer, this guide is designed to ensure the process is smooth and precise.

Tools Required

Phillips screwdriver
T10 Torx screwdriver
New tangential fan motor
Clean workspace
Gloves (optional for safety)

Step-by-Step Replacement Process

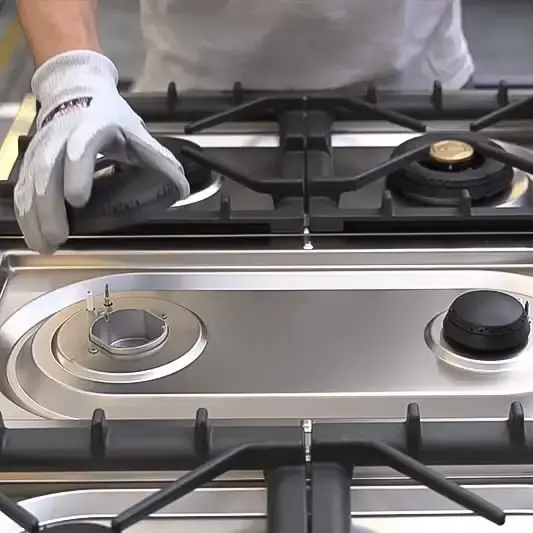

- 1. Remove the Grates and Burners
    - Begin by lifting off the cooktop grates and removing the burner caps.

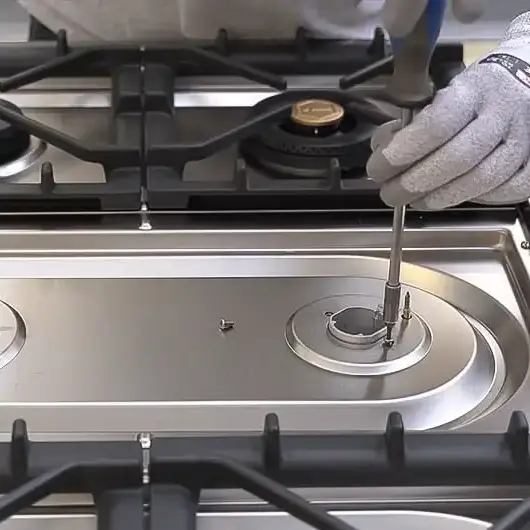

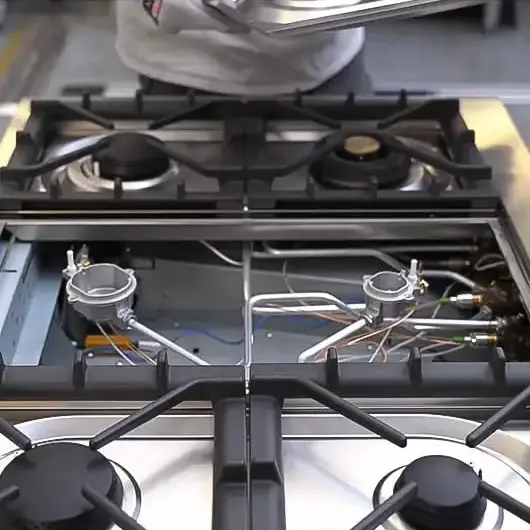

  2. Unscrew the Drip Tray
    - Use a Phillips and T10 Torx screwdriver to remove the screws holding the drip tray in place.

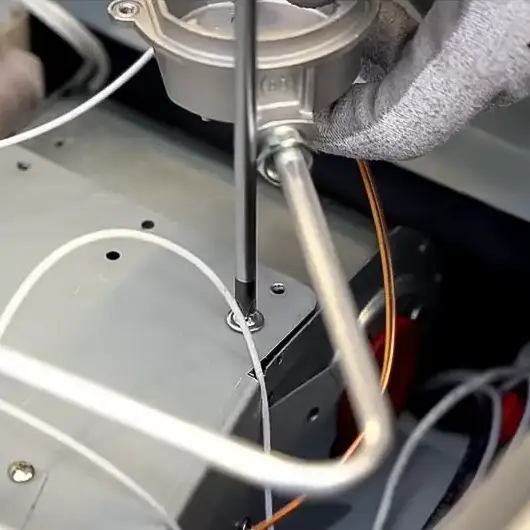

  3. Unscrew the Tangential Fan Motor Screws
    - Locate and unscrew the mounting screws that secure the old fan motor.
  4. Disconnect the Cables
    - Carefully unplug all wiring connected to the old motor.

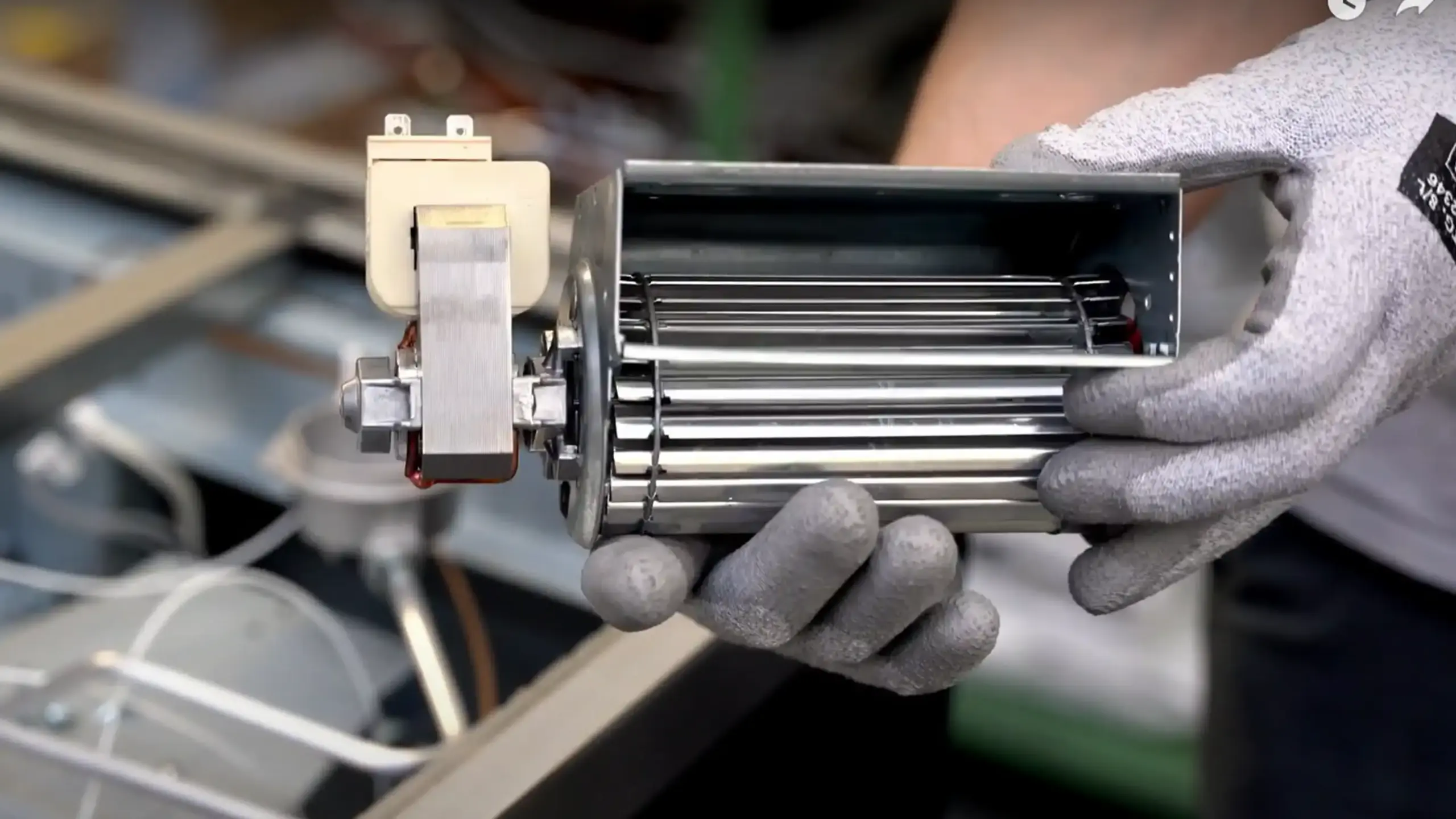

  5. Remove the Old Motor
    - Gently slide or lift out the old tangential fan motor.
  6. Install the New Motor
    - Position the new motor exactly where the old one was mounted.
  7. Secure the Motor with Screws
    - Reinsert and tighten the screws to hold the new fan motor in place.
  8. Reconnect the Cables
    - Reattach all previously disconnected cables securely.
  9. Reinstall the Drip Tray
    - Place the drip tray back in position and secure it with the original screws.
  10. Replace the Burners and Grates
  - Finally, reinstall the burner caps and grates to complete the repair.

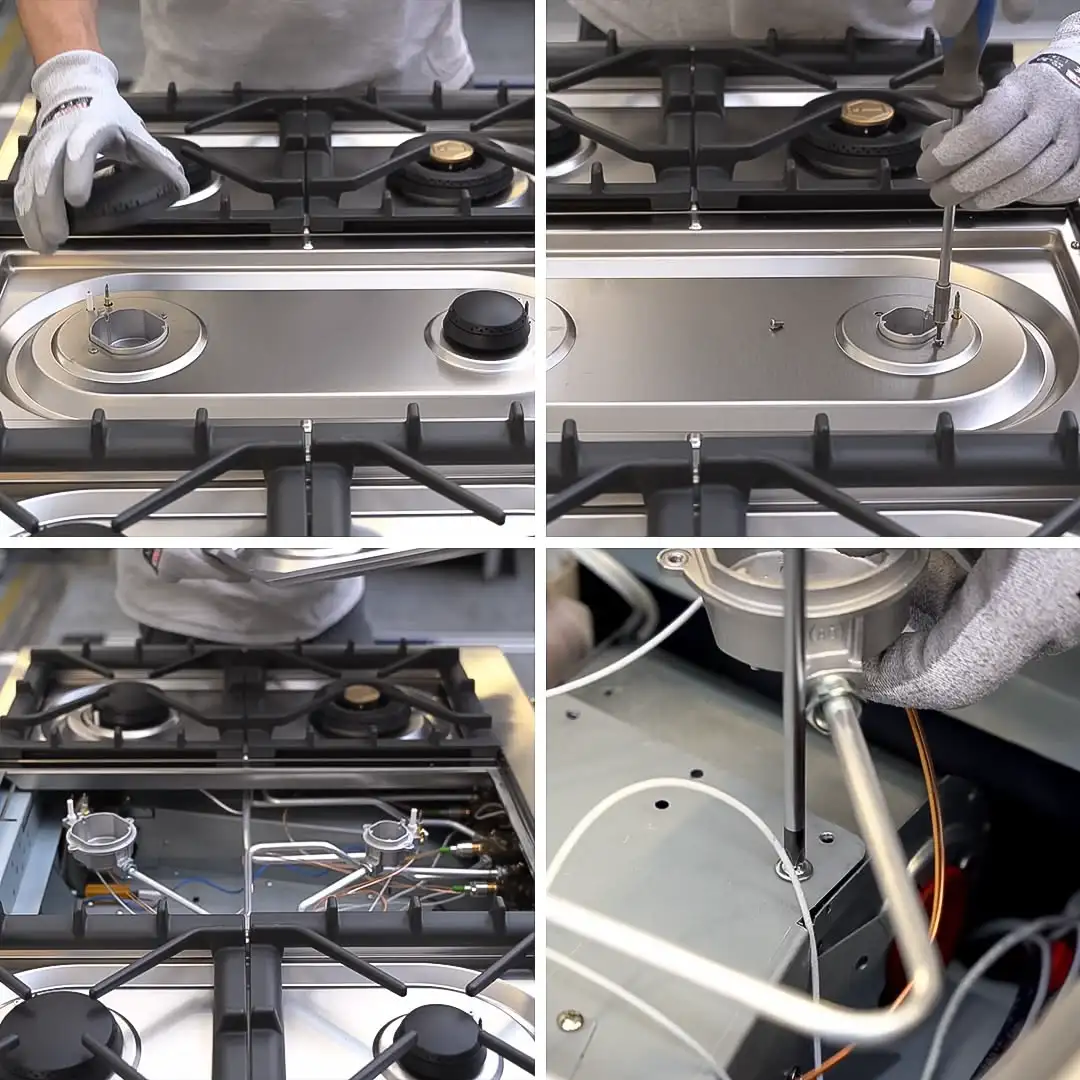

How to replace tangential fan body 1x1 optimised

Final Recommendations

Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
Always hire a licensed professional for gas and electrical installations.
Register your ILVE Panoramagic online to activate your warranty and receive product support.

Need further assistance? Visit us.ilve.com or contact our support team.
