How to Replace the Oven Door on the ILVE Majestic II Range

Whether you’re replacing the oven door or performing a deep clean, knowing how to properly remove and reinstall the oven door on your ILVE Majestic II range is essential. This step-by-step guide ensures a smooth and safe process with minimal effort.

Whether you’re replacing the oven door or performing a deep clean, knowing how to properly remove and reinstall the oven door on your ILVE Majestic II range is essential. This step-by-step guide ensures a smooth and safe process with minimal effort.

Tools Required

  • Pliers
  • A second person for support (optional)

Step-by-Step Replacement Process

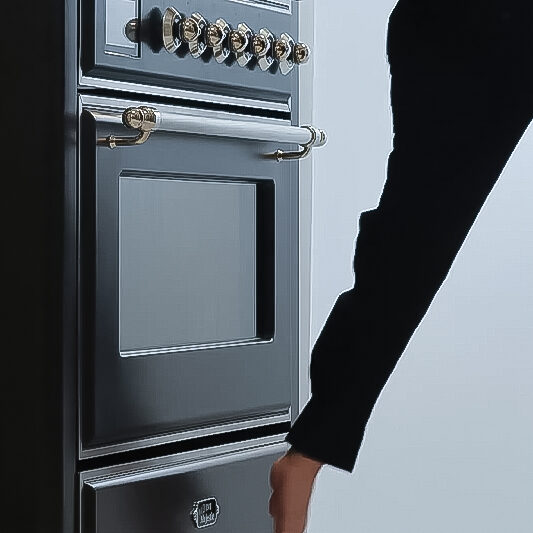

  1. Extend the Warming Drawer and Open the Oven Door
    • Start by pulling out the warming drawer below the oven, then fully open the oven door.
  2. Unlock the Door Hinges

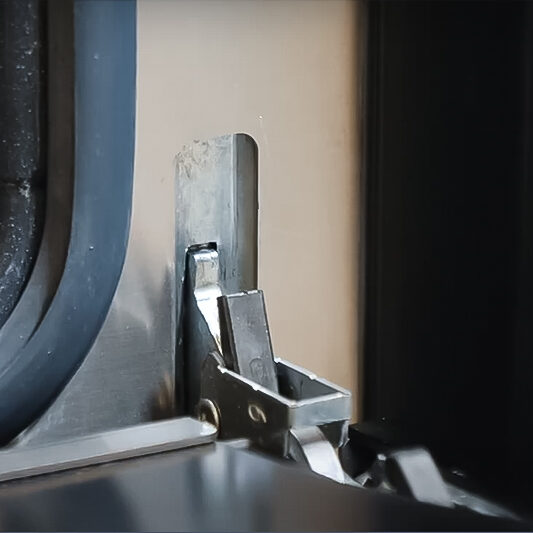

    • Using a pair of pliers, pull both hinge locks toward the oven door to release.
  3. Remove the Oven Door
    • Raise the oven door to approximately a 45-degree angle, then lift up and toward you. It should detach easily.
  4. Install the New Oven Door
    • Using the same 45-degree angle and motion, align and insert the new oven door into the hinge slots.
  5. Fully Open the Door
    • With the warming drawer still extended, pull the oven door completely open.
  6. Secure the Hinge Locks
    • Use pliers to push the hinge locks down toward the oven door until they are fully latched.
  7. Test the Door
    • If the door opens and closes smoothly with no resistance, the installation was successful.

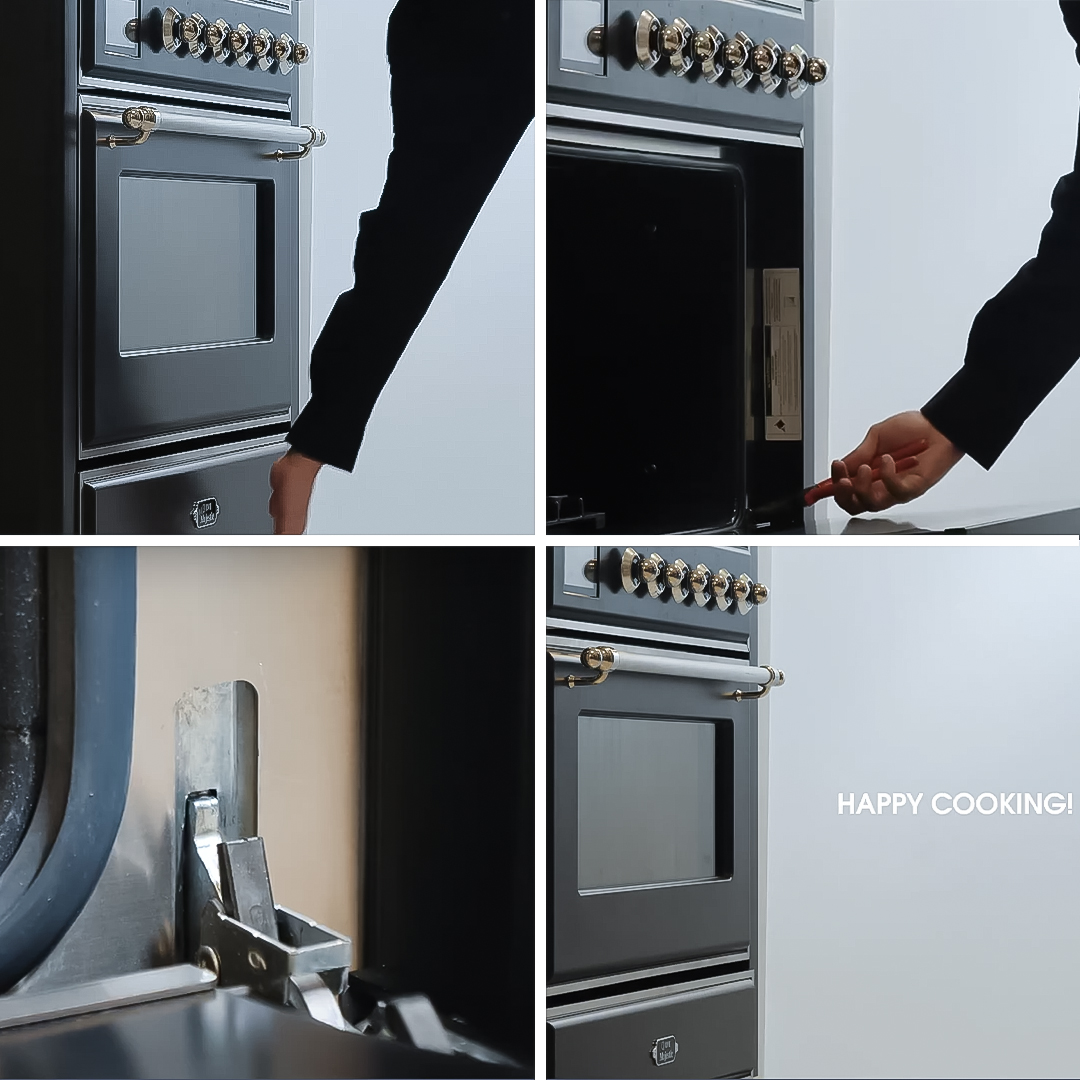

How to Remove and Install the Oven Door on the ILVE Majestic II Range body 1x1 1

Final Recommendations

  • Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
  • Always hire a licensed professional for gas and electrical installations.
  • Register your ILVE Panoramagic online to activate your warranty and receive product support.

Need further assistance? Visit us.ilve.com or contact our support team.
