How to Replace the Oven Glass on the ILVE Nostalgie and Professional Plus Series Range

The ILVE Nostalgie and Professional Plus ranges feature multi-layered oven doors designed for durability, heat retention, and safety. Over time, the interior glass panes may need to be cleaned, replaced, or reinstalled. This guide walks you through how to safely remove and reinstall both inner and middle glass panes using simple tools.

The ILVE Nostalgie and Professional Plus ranges feature multi-layered oven doors designed for durability, heat retention, and safety. Over time, the interior glass panes may need to be cleaned, replaced, or reinstalled.

This guide walks you through how to safely remove and reinstall both inner and middle glass panes using simple tools.

Tools Required

Protective mat
• Screwdriver

Step-by-Step Replacement Process

1. Place a Protective Mat
  - Lay a padded or protective mat on the floor beneath the oven door to prevent scratches or accidental damage during removal.

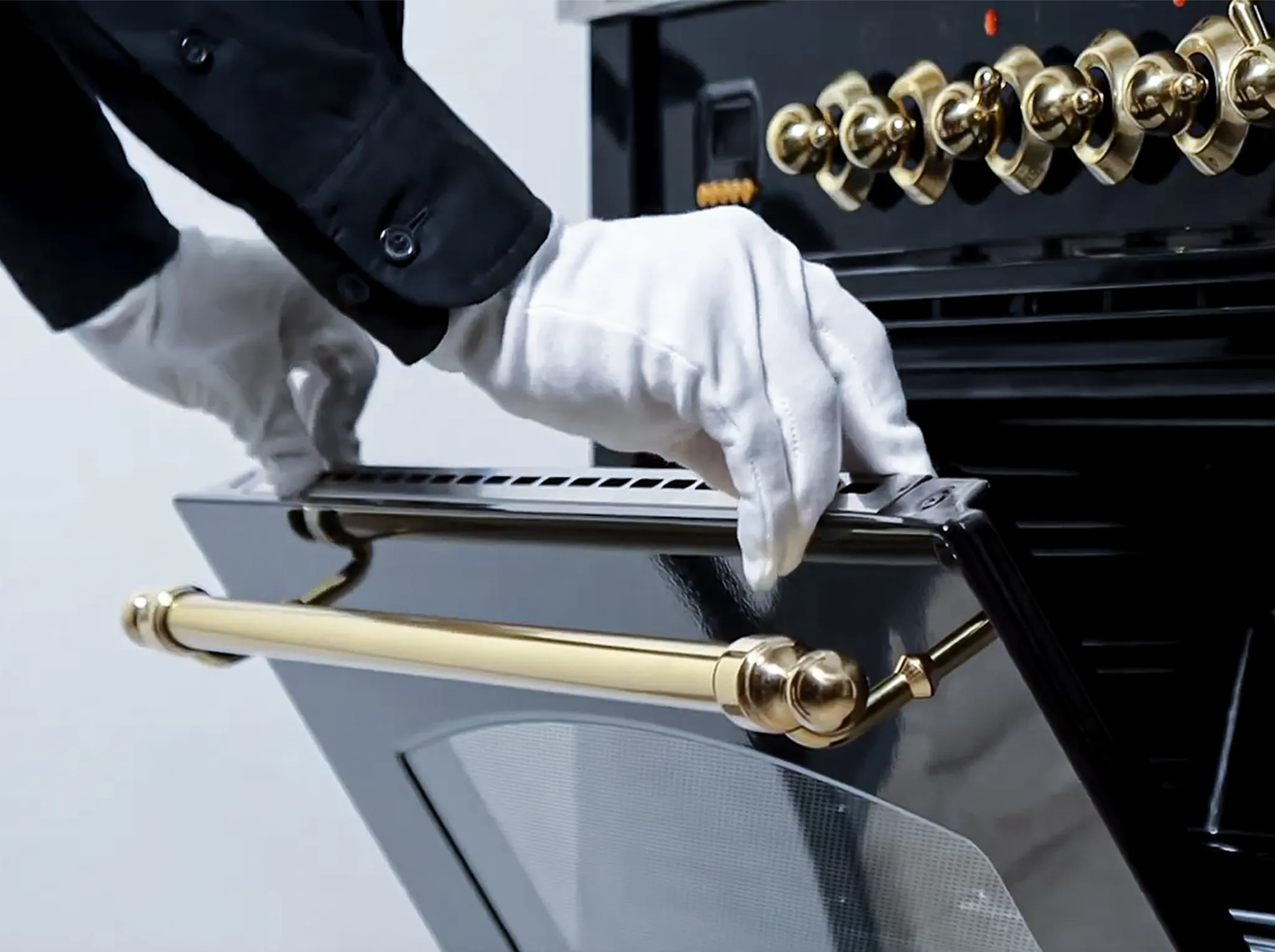

2. Open the Door
  - Open the oven door to approximately 45 degrees. Locate the two screws on either side of the door frame.

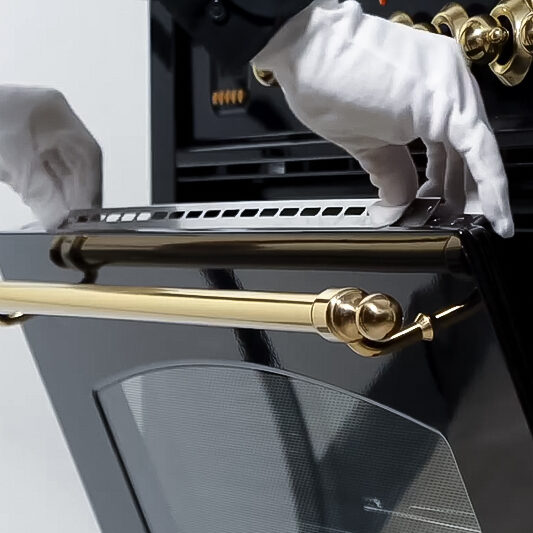

3. Remove the Casing

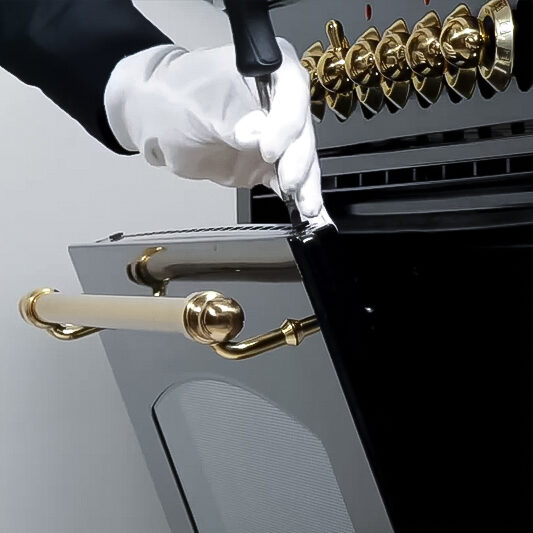

  - Use a screwdriver to remove the screws. Gently lift and remove the casing that holds both glass panes in place.

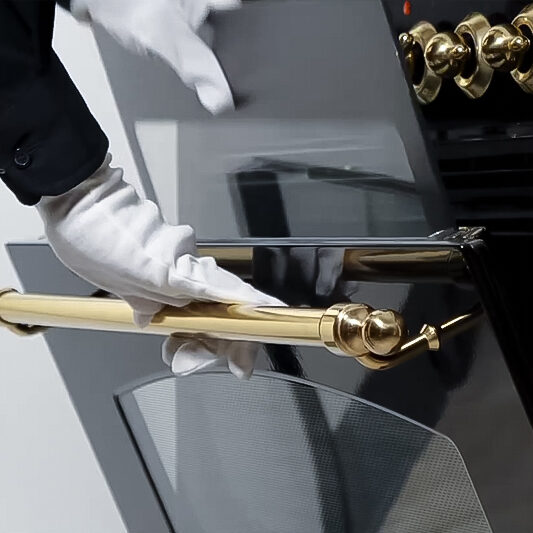

4. Remove the First Glass Pane
  - With the oven door still open, carefully lift out the first (inner) glass pane.

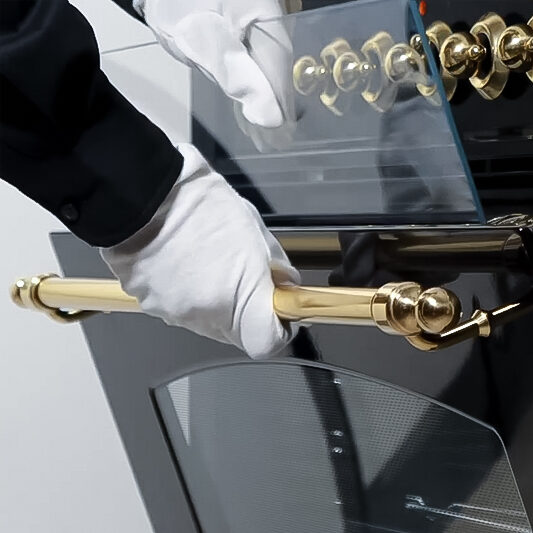

5. Remove the Middle Glass Pane
  - Pull out the second (middle) glass pane. If it resists, apply gentle pressure and alternate pulling from each side until it slides free.
6. Reinstall the Middle Pane
  - To reinstall, place the glass within the built-in ridges and slide it back into position until fully seated.
7. Secure the Casing
  - When placing the casing back on, make sure it aligns and secures both glass panes properly. Reinsert and tighten the screws.
8. Test the Door
  - With everything in place, check that the oven door opens and closes smoothly. If not, re-check alignment before continuing use.

Final Recommendations

Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
Always hire a licensed professional for gas and electrical installations.
Register your ILVE Panoramagic online to activate your warranty and receive product support.

Need further assistance? Visit us.ilve.com or contact our support team.
