1. Open the Wooden Crate

• Use a crowbar to gently loosen the wooden crate from the base.

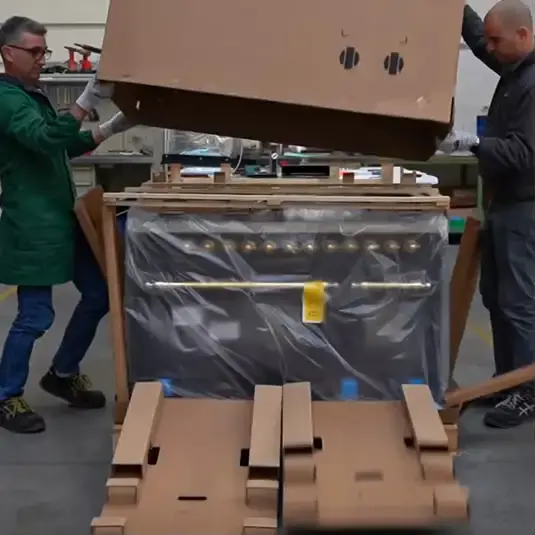

2. Lift and Remove the Crate

• With the crate loosened, carefully lift and remove it to reveal the appliance.

3. Remove the Cardboard

• Strip away any remaining cardboard packaging to begin accessing the range.

4. Take Off the Plastic Wrapping

• Peel off the protective plastic wrap to expose the exterior finish of your ILVE range.

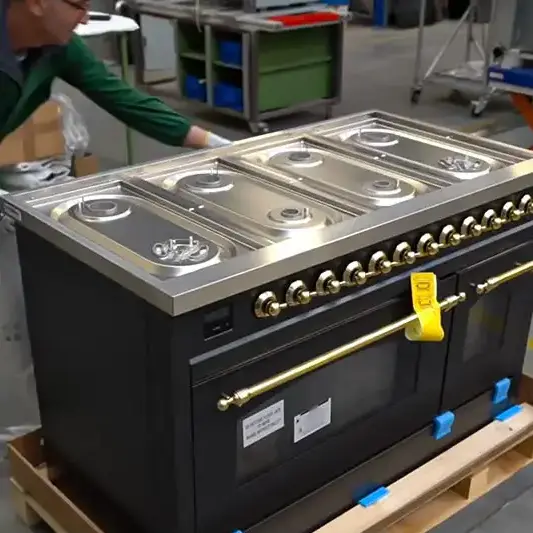

5. Disassemble Grates and Burners

• Remove the top grates and burners to avoid damage during handling.

6. Remove the Drawer

• Slide out the drawer at the bottom of the range and set it aside.

7. Detach the Oven Doors

• Using a screwdriver or pliers, remove the oven doors to make the unit lighter and easier to maneuver.

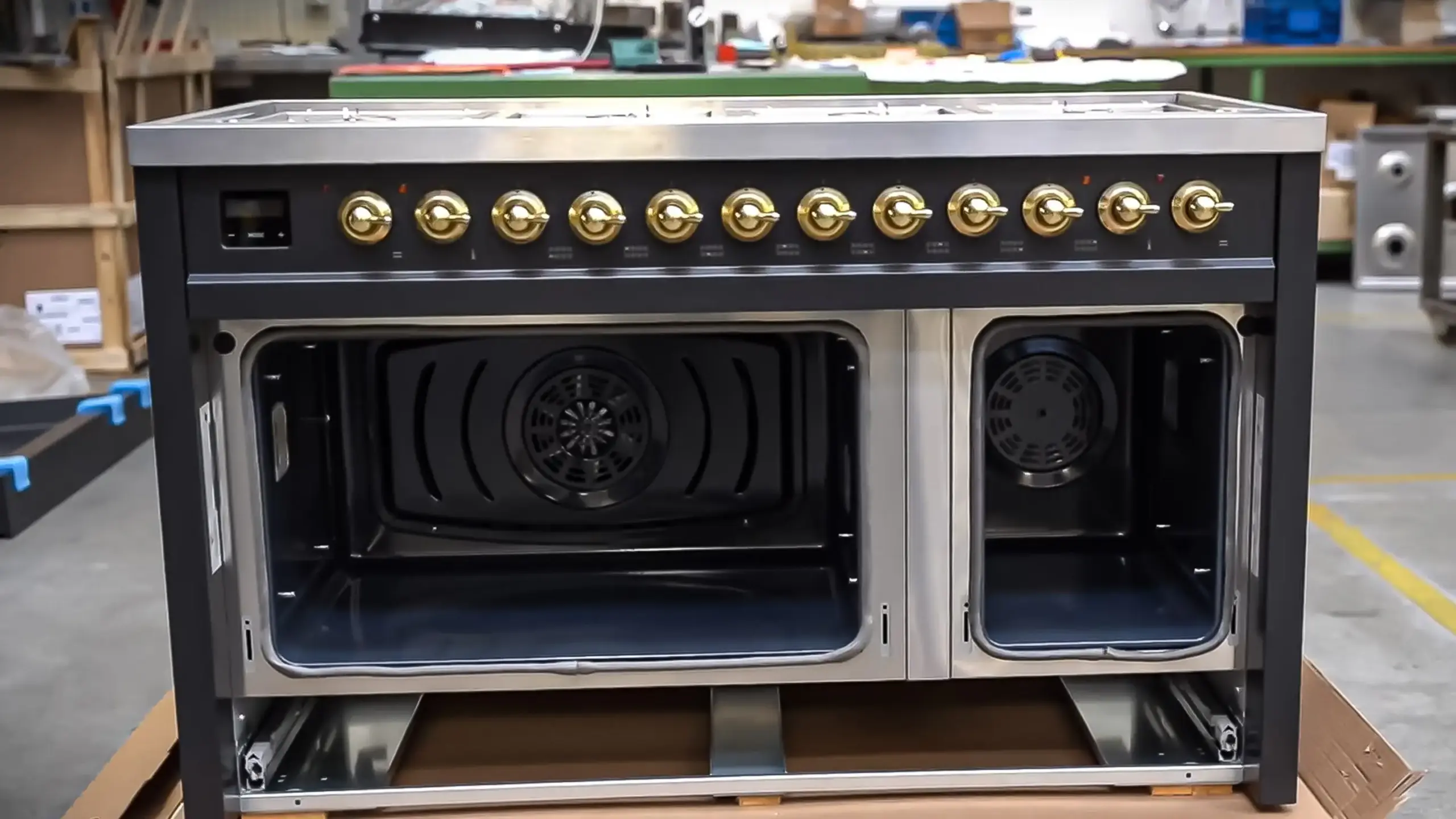

8. Remove Accessories from Inside

• Take out all racks, trays, and accessories from inside both ovens. Important: Make sure the interior of the unit is completely empty before proceeding.

9. Prepare a Protective Base

• Place a piece of the cardboard packaging on the floor to protect your floors and the appliance during movement.

10. Check for a Secure Grip

• Before lifting, ensure you have a firm, balanced grip on the unit.

11. Rotate the Kitchen Unit (with Help)

• With the help of another person, carefully rotate the range onto its back or side as needed to access the bottom.

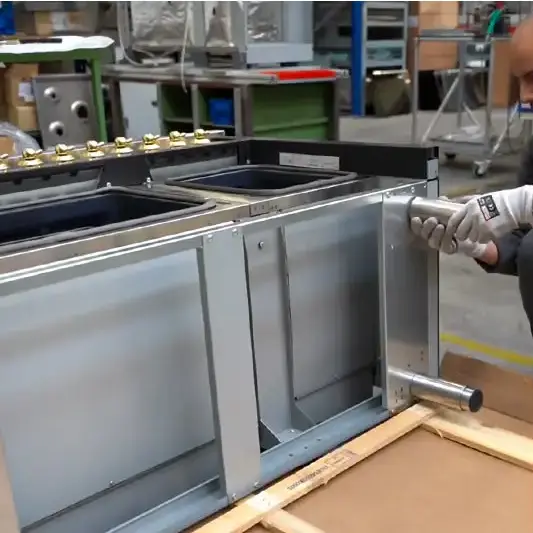

12. Install the Feet

• Remove the feet from the accessory kit and install them according to the included instructions.

13. Tighten the Feet

• Ensure each foot is securely tightened to provide a stable base for the appliance.

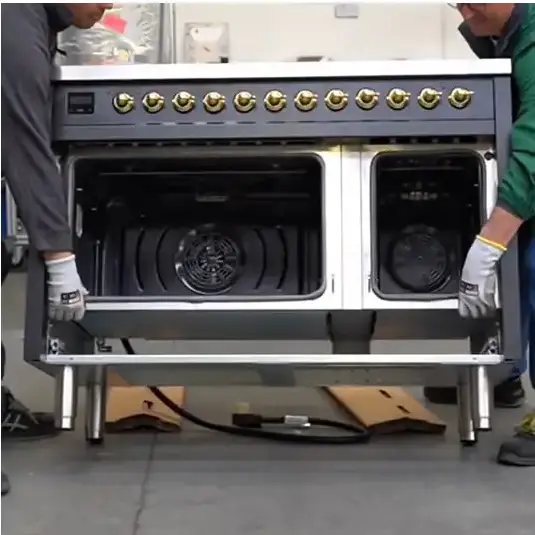

14. Remove the Pallet

• Once the feet are in place, lift the range slightly and slide out the wooden pallet beneath it.

15. Lift Carefully

• When lifting the unit, avoid placing full weight on the feet to prevent bending or damage.

16. Move into Position

• Carefully move and place the unit into its final installation location in your kitchen.

17. Reattach Components

• Finally, reinstall the oven doors, drawer, burners, and grates to complete the setup.
