The ILVE Panoramagic is a bold statement in kitchen design, combining cutting-edge technology with Italian craftsmanship. To ensure a safe and proper installation, follow this professional step-by-step guide for unboxing and installing the unit’s legs.
Whether you’re a homeowner, installer, or designer, this guide will help you prepare your ILVE Panoramagic range for final placement.
Tools Required
- Crowbar
- Screwdriver
- Pliers
- Two people for lifting
- Cardboard or protective padding
Step-by-Step Replacement Process
- Loosen the Wooden Crate
- Start by using a crowbar to loosen the wooden crate surrounding the range.

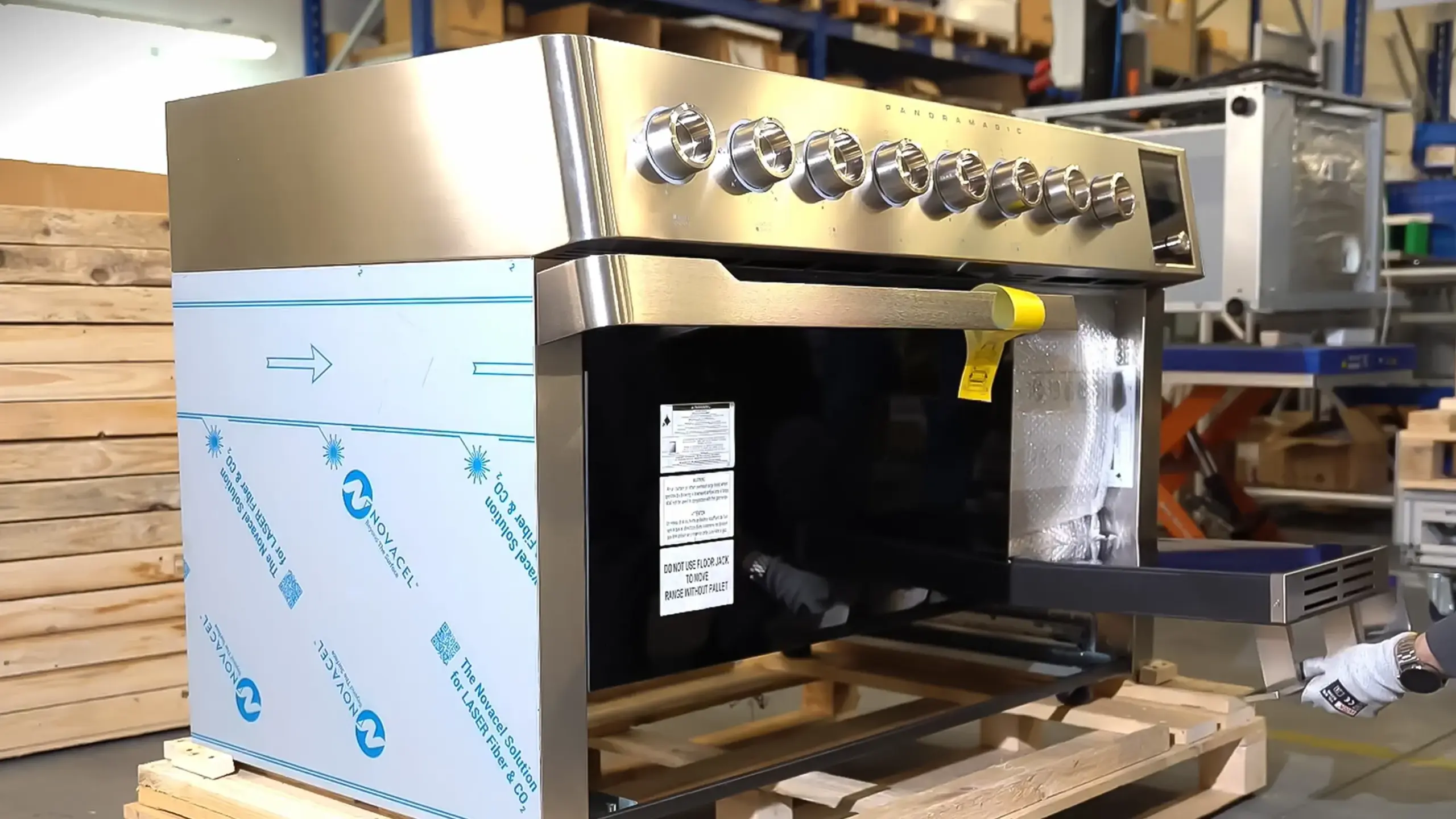

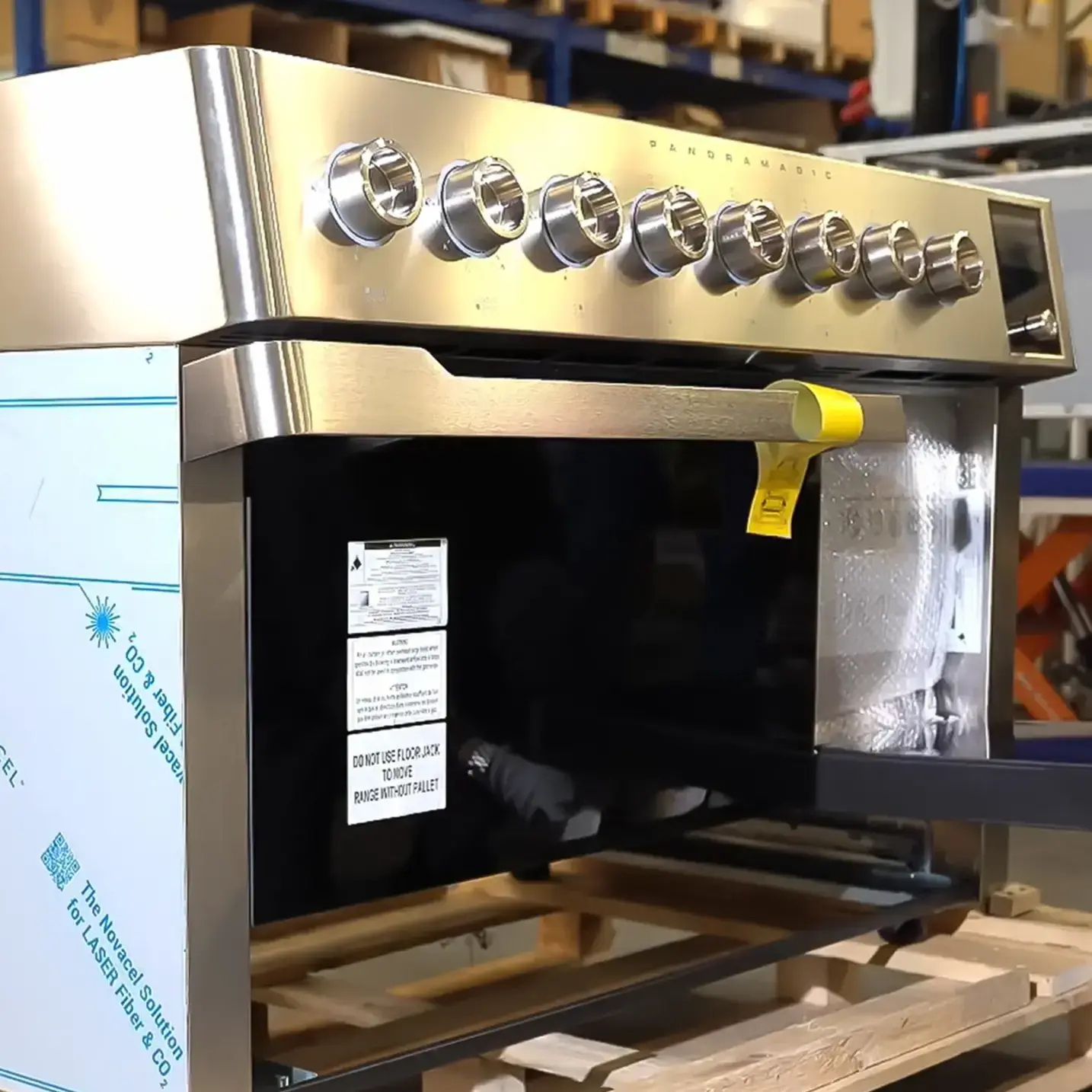

- Lift and Remove the Crate
- With assistance, carefully lift and remove the crate to reveal the appliance.
- Remove the Cardboard
- Peel away all cardboard packaging from the unit.
- Take Off the Plastic Wrapping
- Unwrap any protective plastic covering the body of the appliance.
- Disassemble Grates and Burner Caps
- Remove the cooktop grates and burner caps to prevent damage during handling.
- Remove the Drawer
- Pull out and set aside the bottom drawer of the range.
- Detach the Oven Doors
- Using a screwdriver or pliers, gently remove the oven doors to reduce the weight of the unit for lifting.
- Remove All Accessories Inside the Ovens
- Take out all trays, racks, and packaged accessories stored inside both ovens.
- Ensure the Unit Is Completely Empty
- Double-check that the appliance is empty before moving forward.
- Protect the Unit During Handling
- Place a piece of cardboard from the original packaging against the back of the range to prevent scratching while rotating.

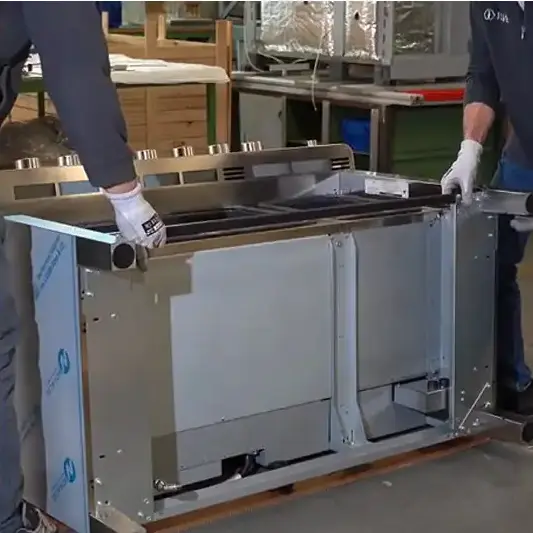

- Carefully Rotate the Unit
- With the help of another person, rotate the unit on its side or back to access the underside.
- Remove Temporary Shipping Feet
- Detach any temporary feet or protective blocks used for transport.

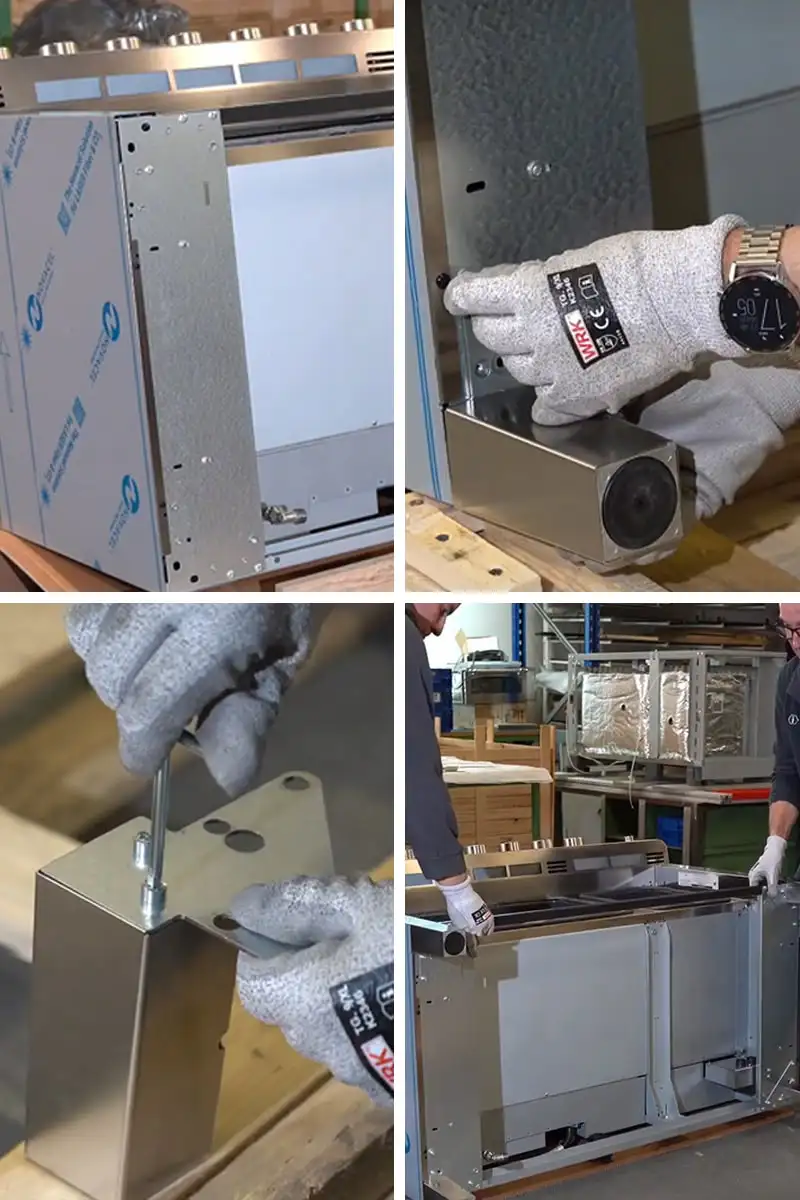

- Install the Permanent Legs
- Locate the legs in the included kit and follow the installation instructions to assemble them.

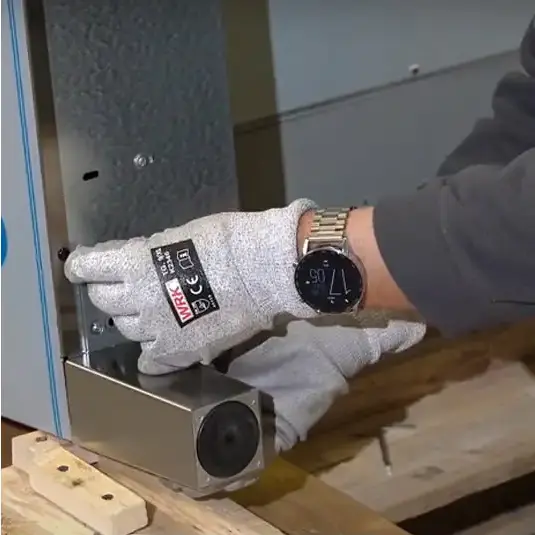

- Secure the Legs
- Tighten each leg securely to ensure a stable and level base.
- Remove the Pallet
- Lift the appliance slightly and slide out the wooden pallet beneath it.
- Lift Carefully to Avoid Damage
- When lifting the range, avoid placing full weight on the newly installed legs.
- Position the Unit in Place
- Gently move the unit into its designated spot in the kitchen layout.
- Reattach All Components
- Finish the process by reinstalling the oven doors, drawer, cooktop grates, and burners.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Panoramagic online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
