Replacing the oven door on your ILVE Majestic range requires careful handling and a few key steps to ensure the door is installed correctly and safely. Whether you’re upgrading or performing maintenance, this guide walks you through the full process.
This replacement should ideally be handled by qualified personnel, especially when working with hinge tension.
Tools Required
- Pliers
- Hollow tube or hinge tool (recommended for hinge tension release)
- Replacement ILVE Majestic oven door
Step-by-Step Replacement Process
-

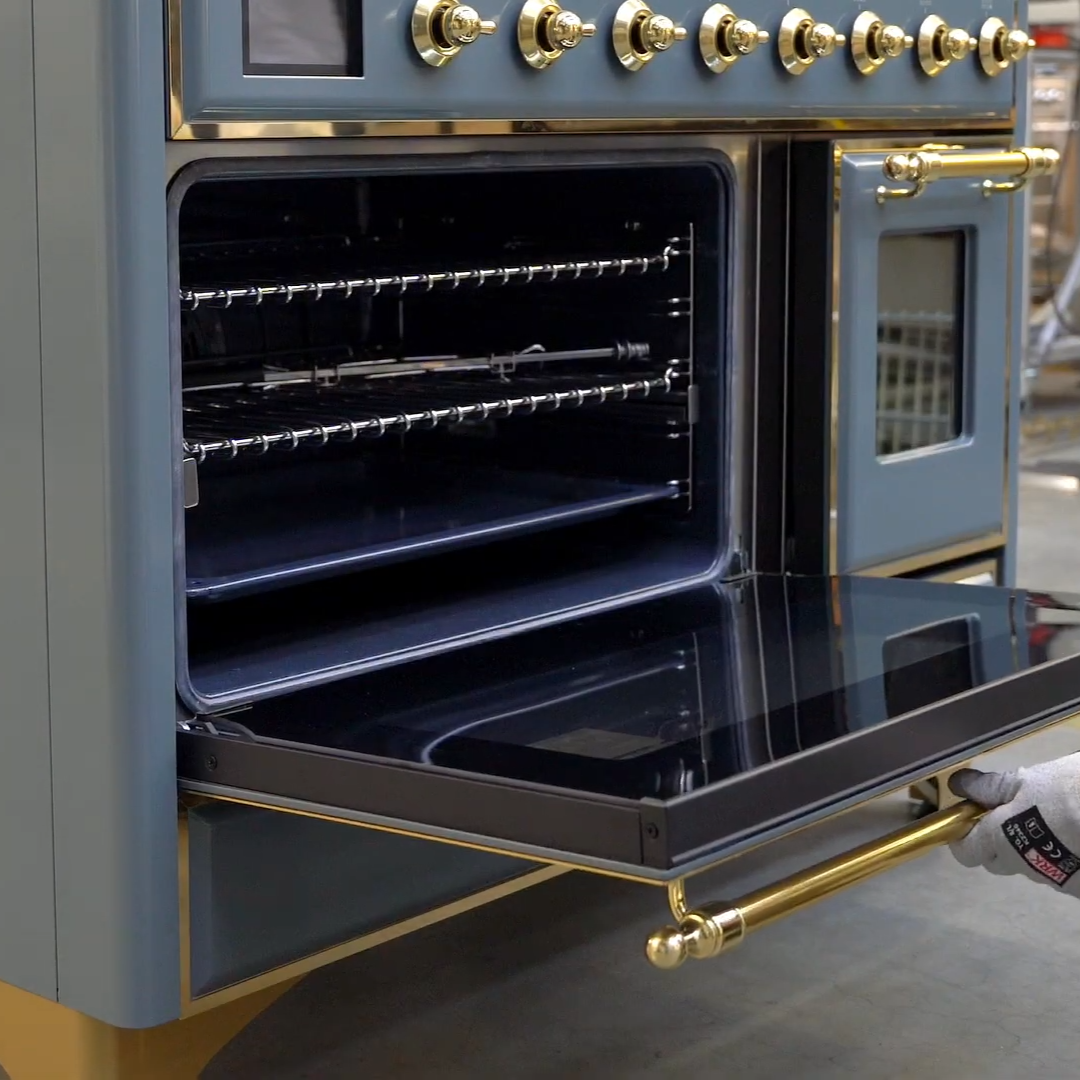

Open the door to a 90-degree angle.
Open the oven door fully to allow clear access to the hinge hooks. -

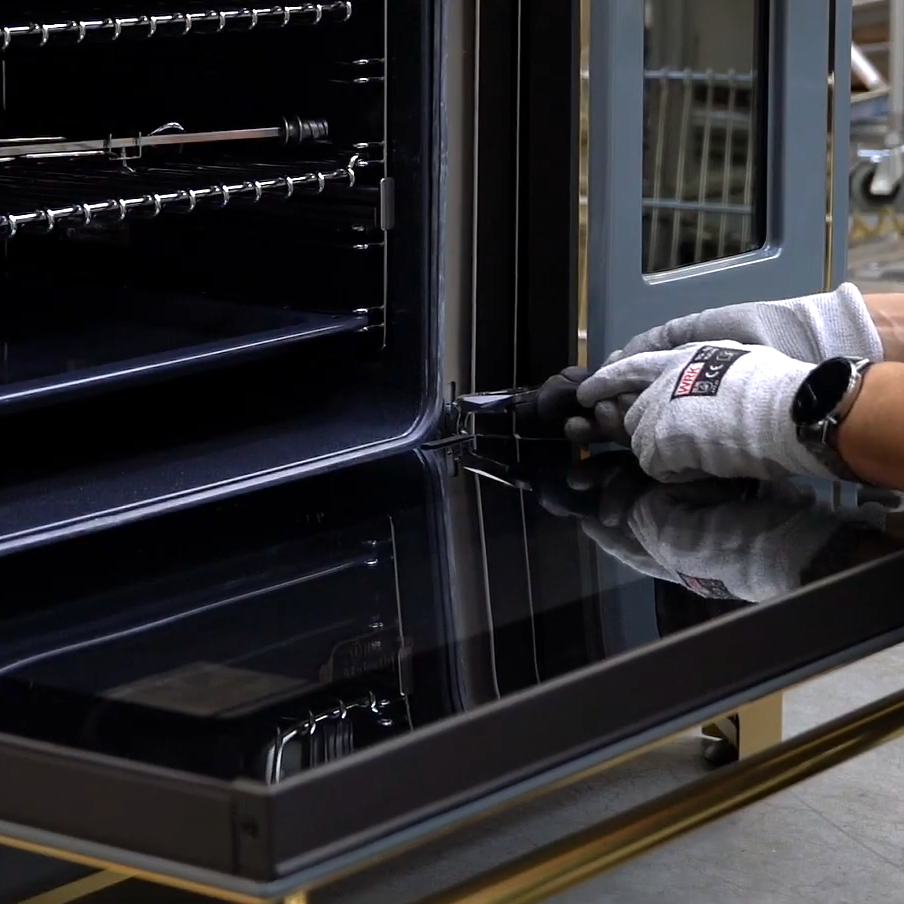

Release the two hinge hooks.
Using your hand or a suitable tool, carefully unhook the safety catches on both hinges. -

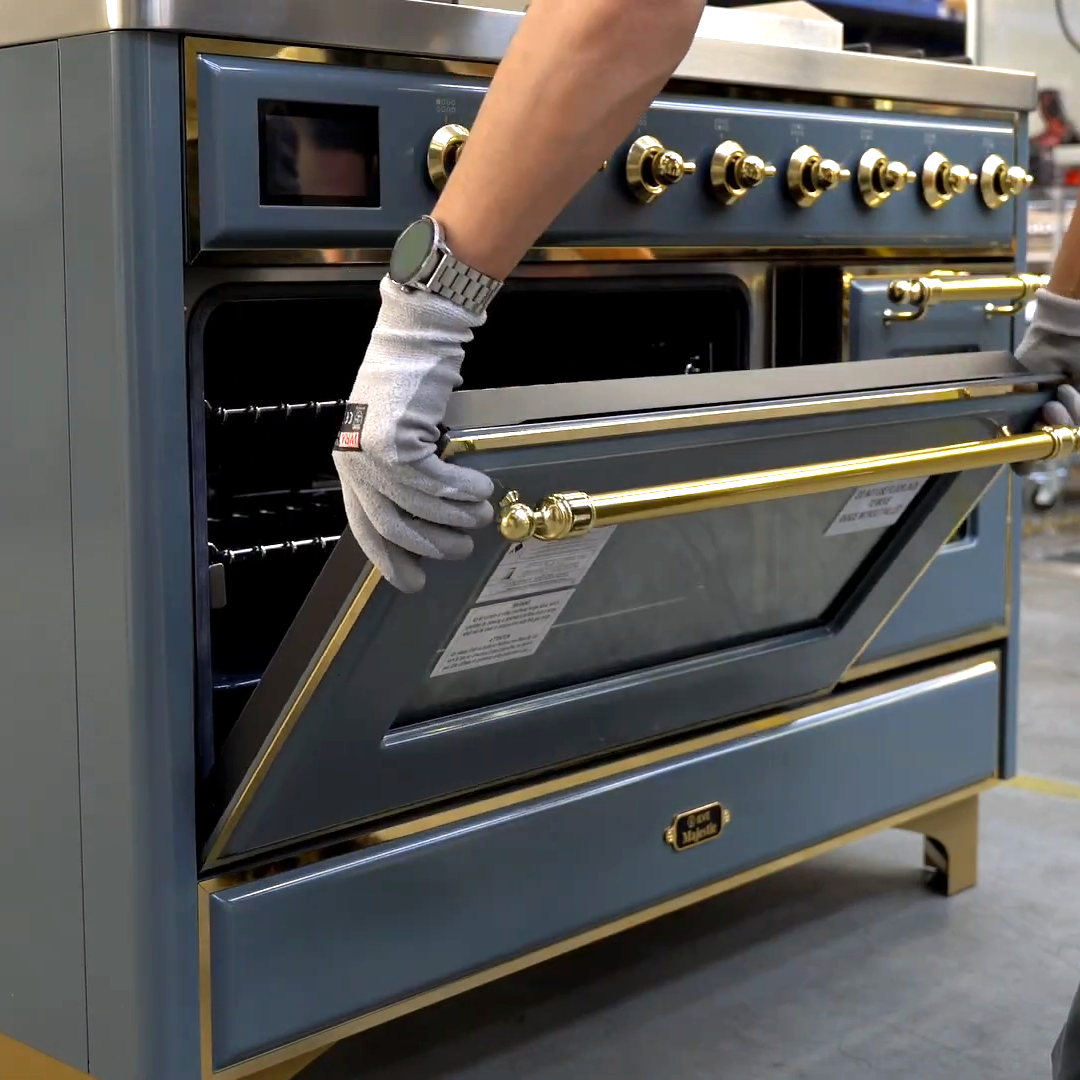

Remove the old door.
Lift the door upward and away from the oven, then set it aside on a protected surface. -
Open the hinges using a tool (qualified personnel only).
Using a hollow tube or similar tool, carefully extend the hinges into the open position to prepare for reinstallation. -
Engage the hinge hooks.
Once the hinges are open, re-engage the safety hooks to hold them securely in place. -

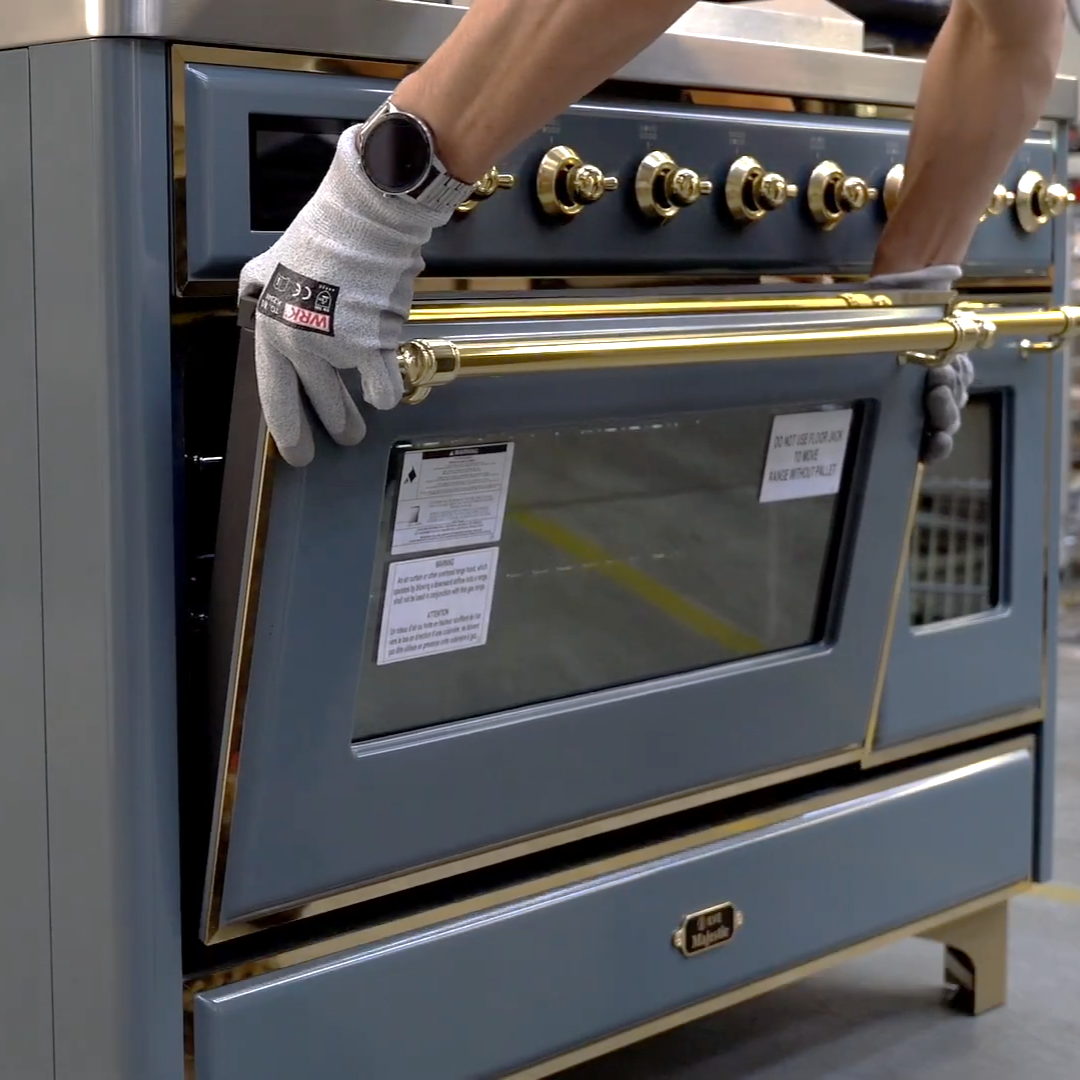

Slide the new door into the guides.
Align the hinge arms of the new door with the guide slots on the oven frame and slide them into position. -
Fully open the door.
Open the newly installed door completely to ensure proper alignment with the hinges. -
Secure the hooks with pliers.
Using pliers, firmly lock the hinge hooks back into their secured position. -

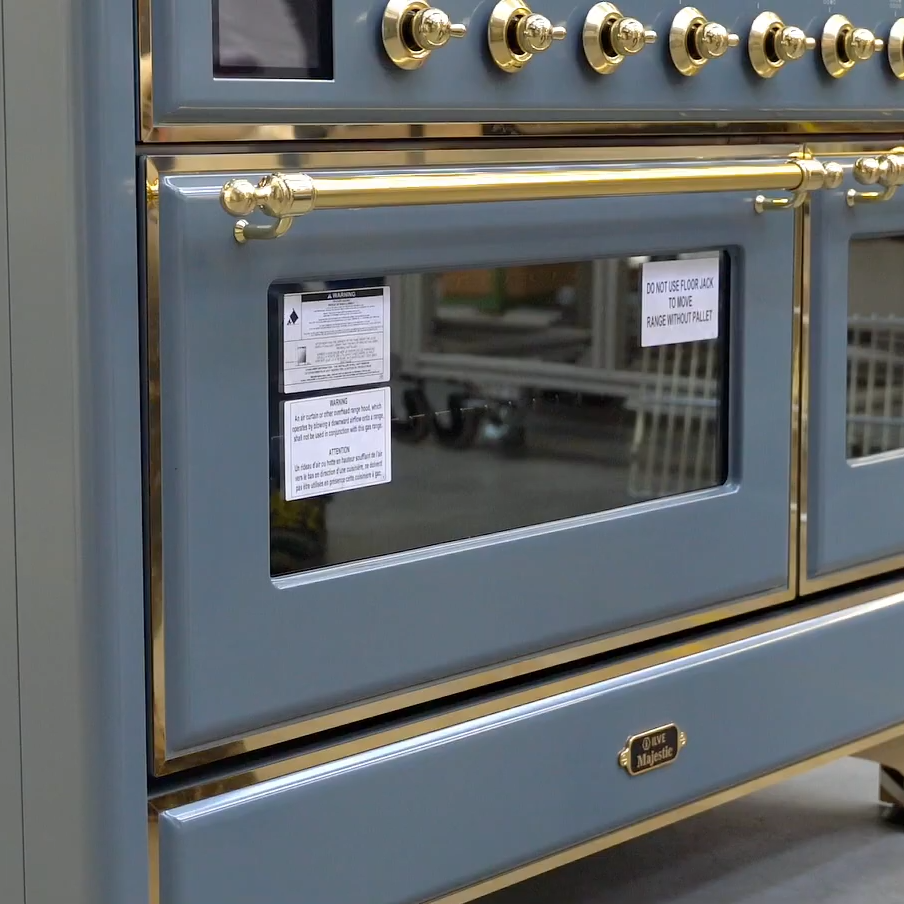

Close the door.
Gently close the oven door to complete the installation.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Range online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
