How to Replace the Power Board on ILVE Majestic Ranges
Whether you’re repairing a faulty board or upgrading a component, replacing the power board on an ILVE Majestic range is a precise but manageable task. This guide walks you through each step required to access, remove, and reinstall the power board safely.
Ideal for technicians and qualified DIY users, these instructions help ensure proper reconnection and handling of internal wiring.
Whether you’re repairing a faulty board or upgrading a component, replacing the power board on an ILVE Majestic range is a precise but manageable task. This guide walks you through each step required to access, remove, and reinstall the power board safely.
Ideal for technicians and qualified DIY users, these instructions help ensure proper reconnection and handling of internal wiring.
Tools Required
- Screwdriver (Phillips or flathead depending on model)
- Small pliers
- New ILVE power board
Step-by-Step Replacement Process
-
Remove the cooking unit.
Remove the cooking unit from its built-in housing to expose the back panel. -

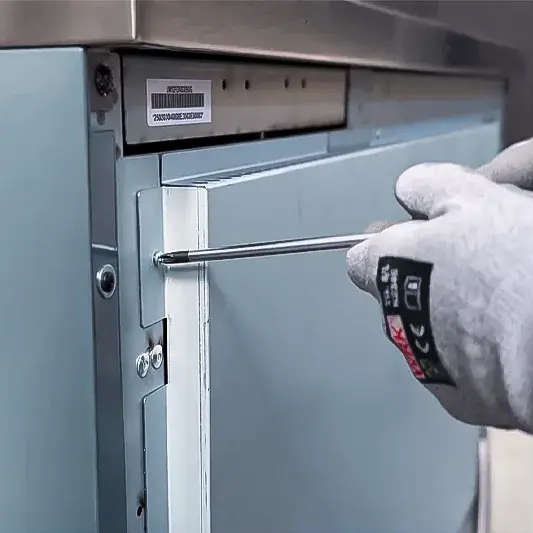

Access the power board.
Use a screwdriver to remove the back cover. -
Take cable notes.
Document the existing cable positions for accurate reassembly later. -

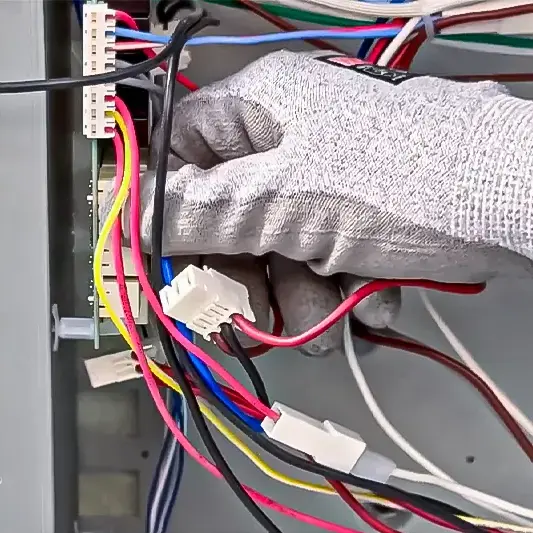

Disconnect the cables.
Gently unplug all cables connected to the power board. -

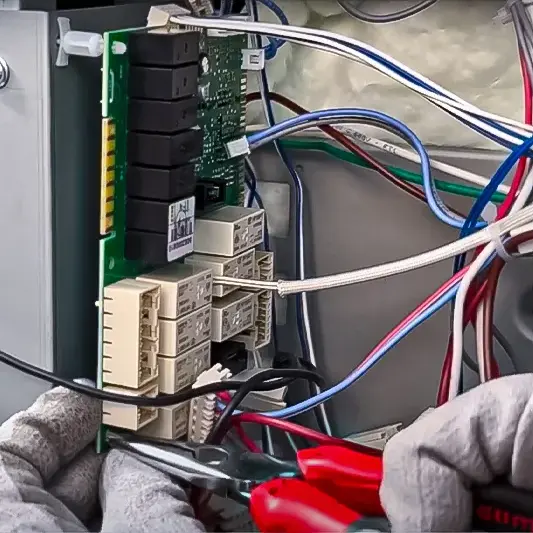

Remove the power board.
Use small pliers to carefully extract the old board from its position. -

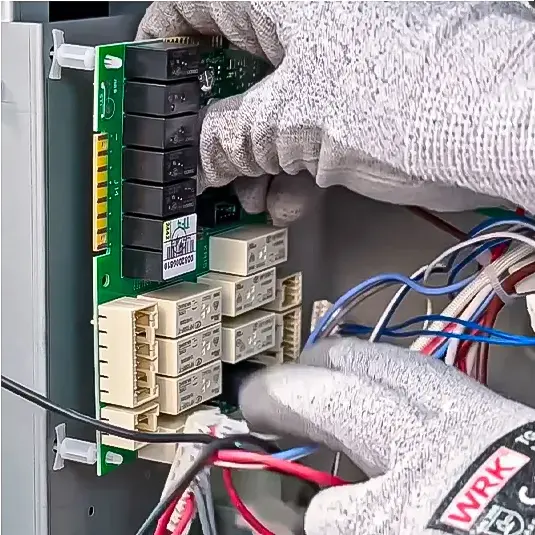

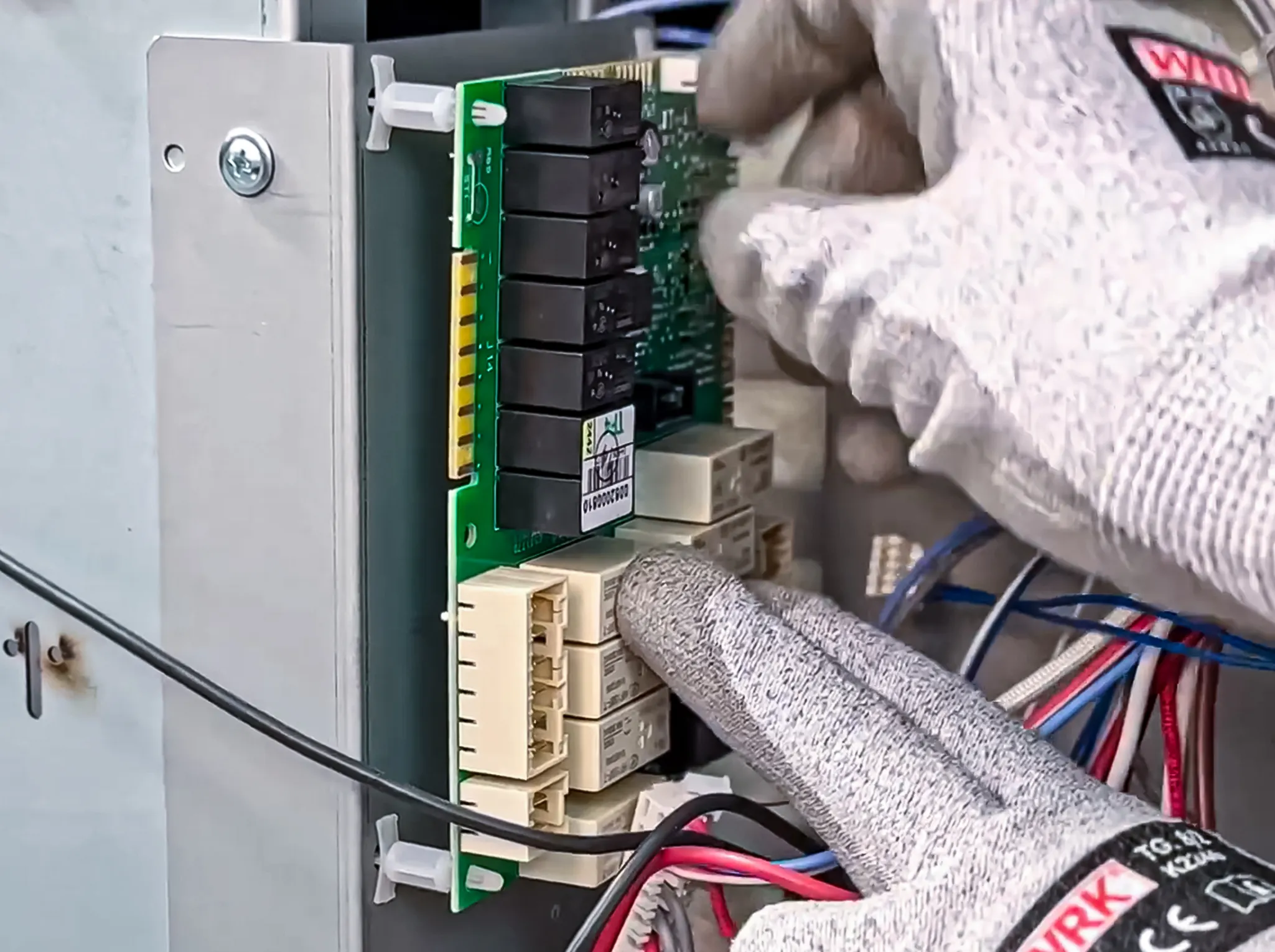

Install the new board.
Insert a new power board into the slot securely. -
Reconnect the cables.
Plug all cables back in their original positions based on your earlier notes. -
Close the back cover.
Reattach the back panel and tighten all screws. -
Reposition the unit.
Slide or position the cooking unit back into its housing.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Range online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
