Replacing the TFT display on an ILVE Majestic range requires careful disassembly and handling of sensitive electronic components. This guide will walk you through each step to ensure a safe and proper replacement.
Ideal for appliance technicians or experienced homeowners.
Tools Required
- Phillips screwdriver
- Torx T10 screwdriver
- Heat gun
- Microfiber cloth
- Flathead screwdriver (optional)
- New TFT Display Module
Step-by-Step Replacement Process
-

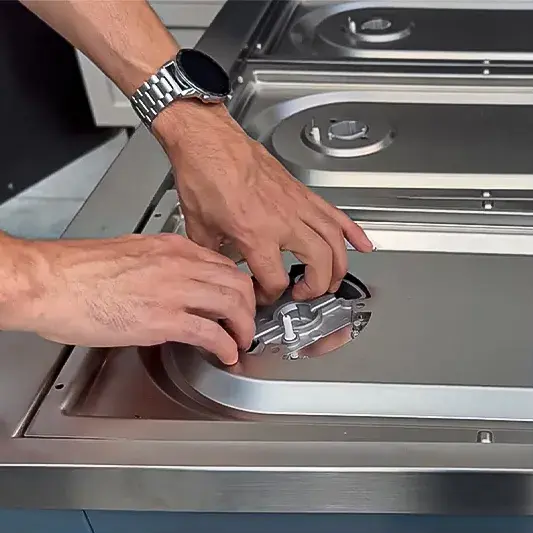

Remove the grates and burners.
Lift the burners and grates off the cooktop surface. -
Unscrew the drip tray.
Using Phillips and T10 Torx screwdrivers, remove the screws securing the drip tray. -

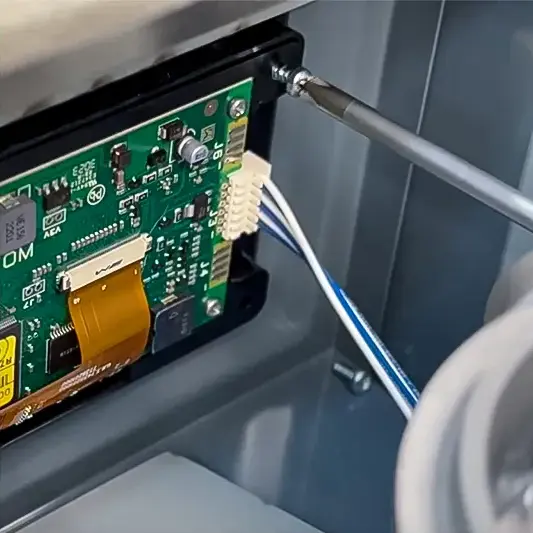

Unscrew the support.
Locate and unscrew the internal display support bracket. -

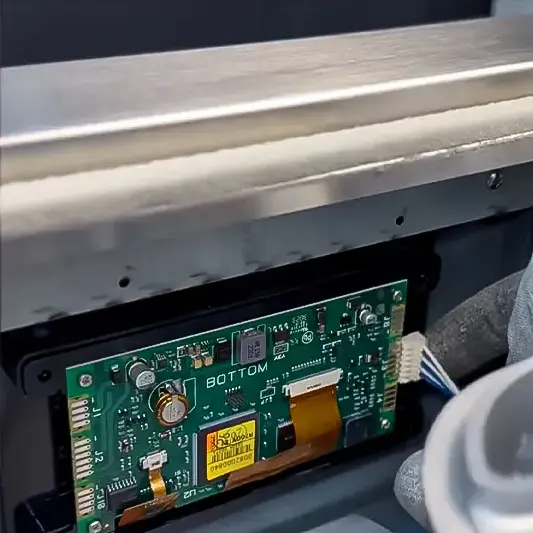

Detach the cables.
Carefully unplug the cables from the back of the display and mark the sequence for reconnection. -

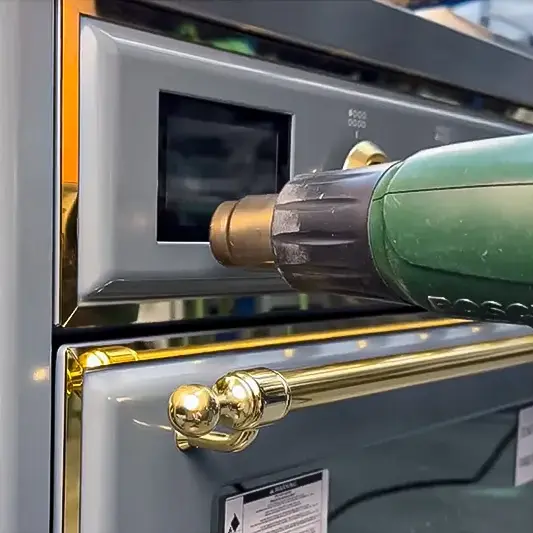

Soften the Adhesive.
Use a heat gun in circular motions to loosen the glue holding the display.
Note: Maintain a 5cm distance to avoid damaging the varnish. -
Remove the Display.
Gently pull out the old display.
Note: If the pull tab breaks, use a flathead screwdriver to assist in detaching it. -
Clean the area.
Use a microfiber cloth to remove any adhesive residue and dust. -
Insert the new display.
Position the new display in the mounting space. -
Reconnect the cables.
Attach all cables back in the correct sequence. -
Reattach the support.
Screw the support bracket back into place. -
Secure the drip tray.
Reinstall the drip tray using the same Phillips and Torx screws. -
Reinstall the burners and grates.
Return all components to their original positions.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Range online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
