How to Replace the Oven Glass on the ILVE Majestic II Series Range

This guide walks you through the proper method for removing and replacing the glass panes safely.

The ILVE Majestic II range includes multiple layers of glass in the oven door for insulation and safety. If the inner or middle pane becomes damaged or dirty beyond repair, you can replace it using just a few basic tools.

This guide walks you through the proper method for removing and replacing the glass panes safely.

Tools Required

  • Protective mat
    • Screwdriver

Step-by-Step Replacement Process

  1. Place a Protective Mat

    • Lay a padded or protective mat on the floor beneath the oven door to avoid scratches or glass damage during removal.

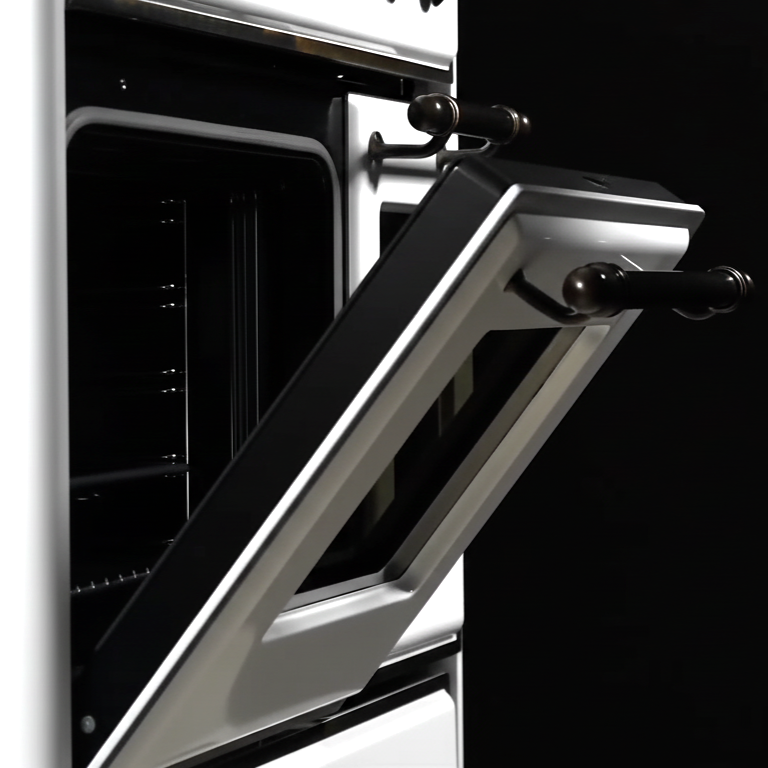

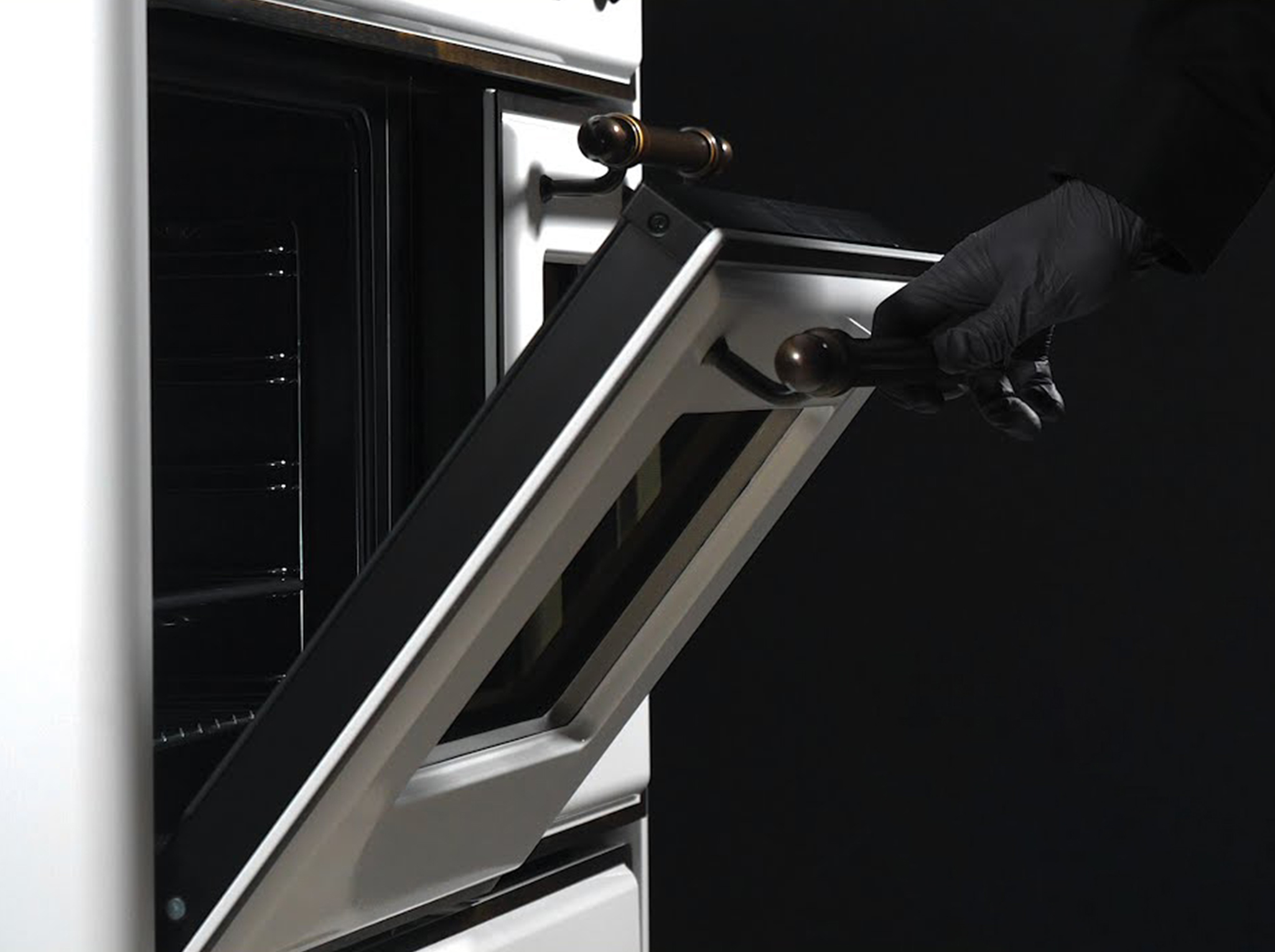

  2. Open the Door

    • Open the oven door to approximately 45 degrees. Locate the two screws on the sides of the inner door frame.

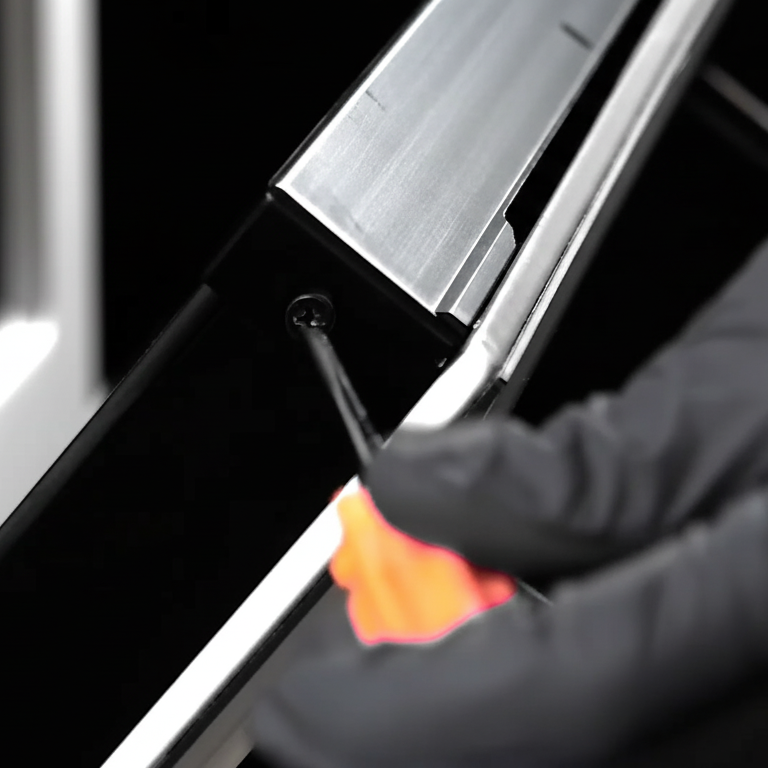

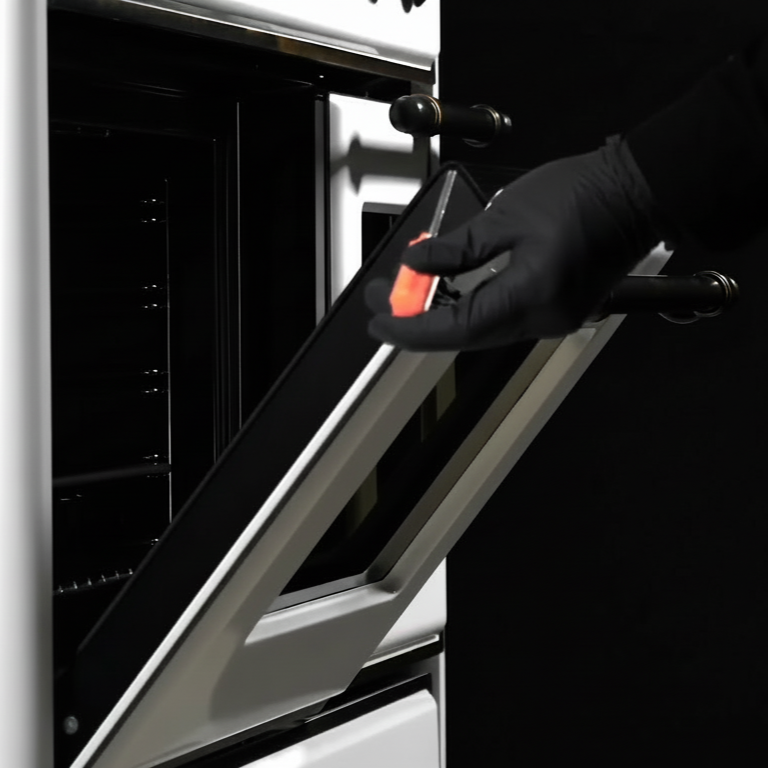

  3. Remove the Casing

    • Use a screwdriver to remove the screws and gently lift the casing that secures the two glass panes inside the door.

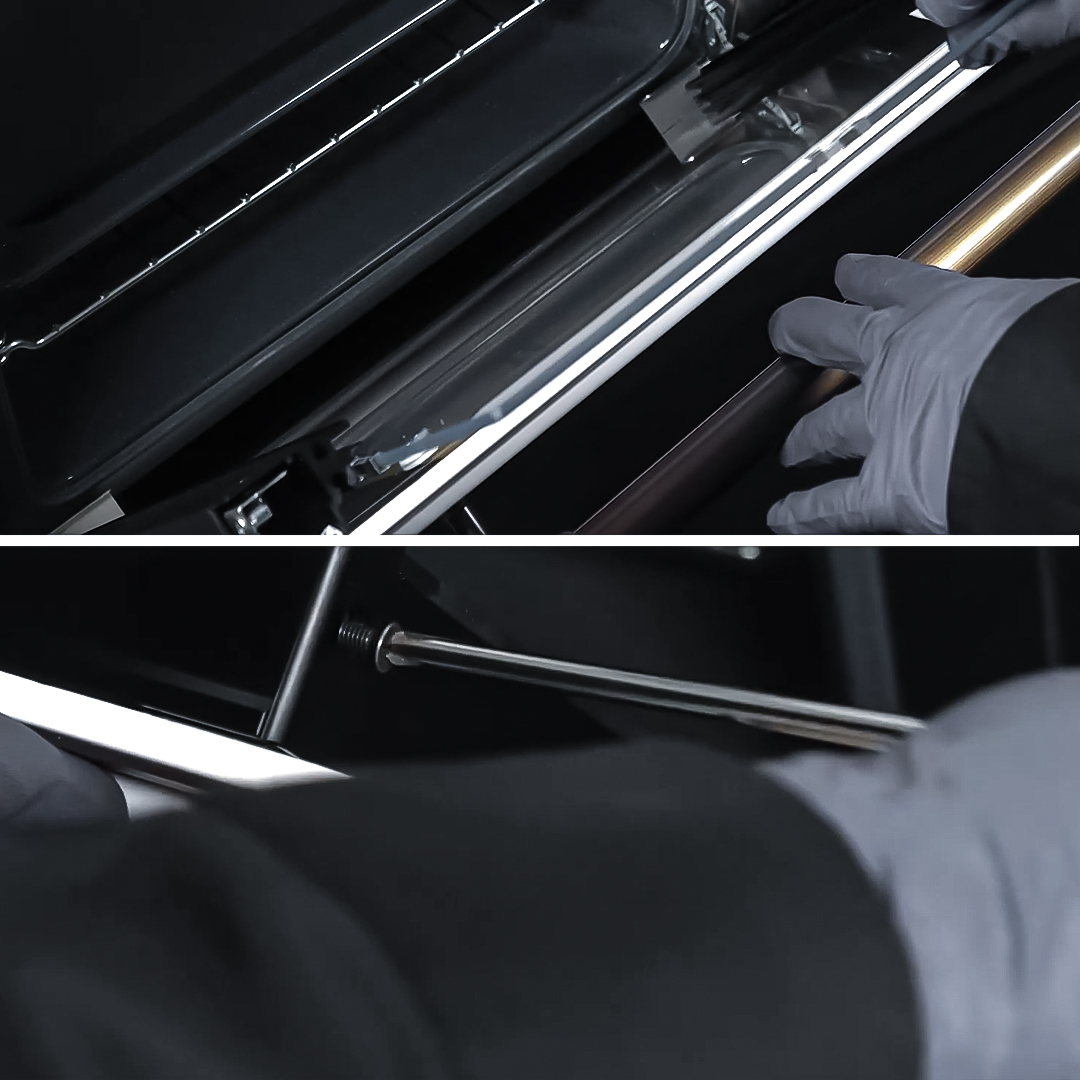

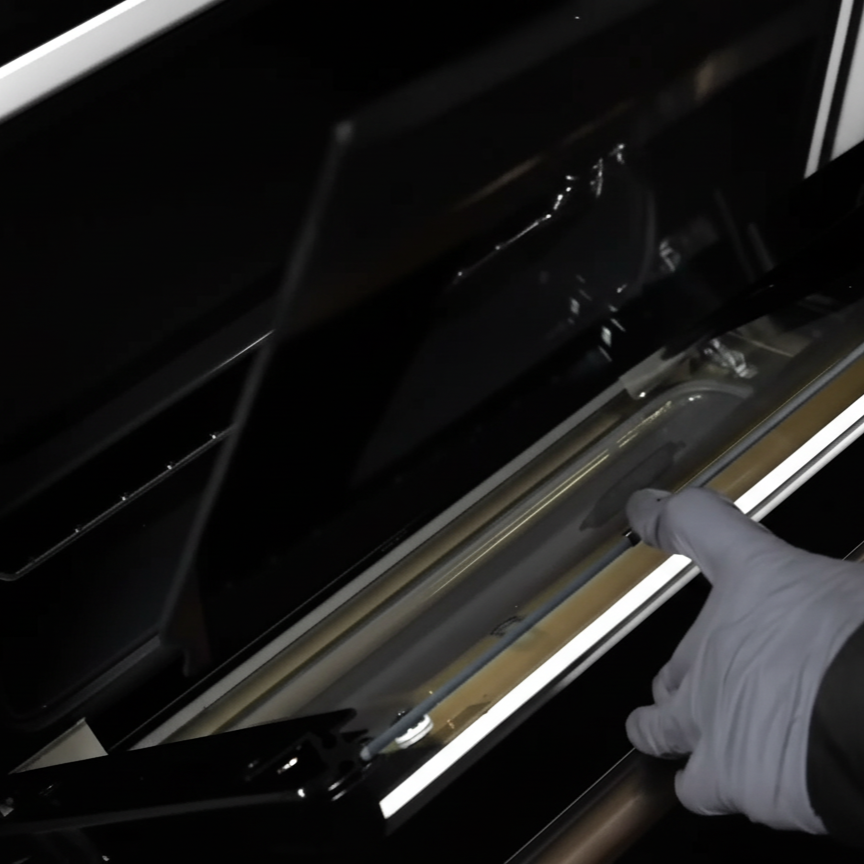

  4. Remove the First Glass Pane

    • With the door still open, carefully lift and remove the first (inner) glass pane.

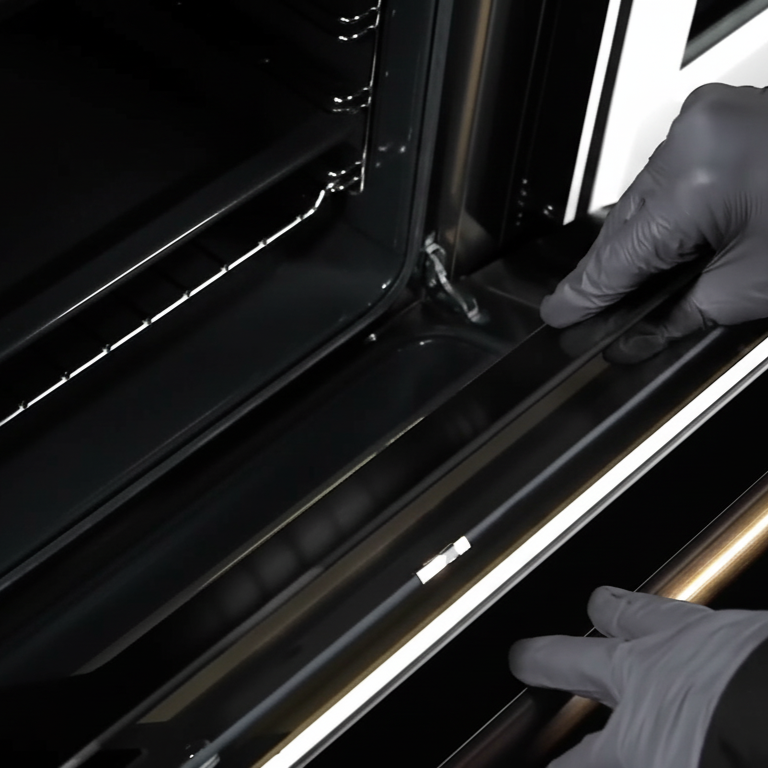

  5. Remove the Middle Glass Pane

    • Pull the second (middle) glass pane out firmly but evenly. If it resists, gently alternate pulling from each side to free it without damage.

ILVE Majestic II Series Range How to replace the Oven Glass body 1x1 1

Final Recommendations

  • Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
  • Always hire a licensed professional for gas and electrical installations.
  • Register your ILVE Panoramagic online to activate your warranty and receive product support.

Need further assistance? Visit us.ilve.com or contact our support team.
