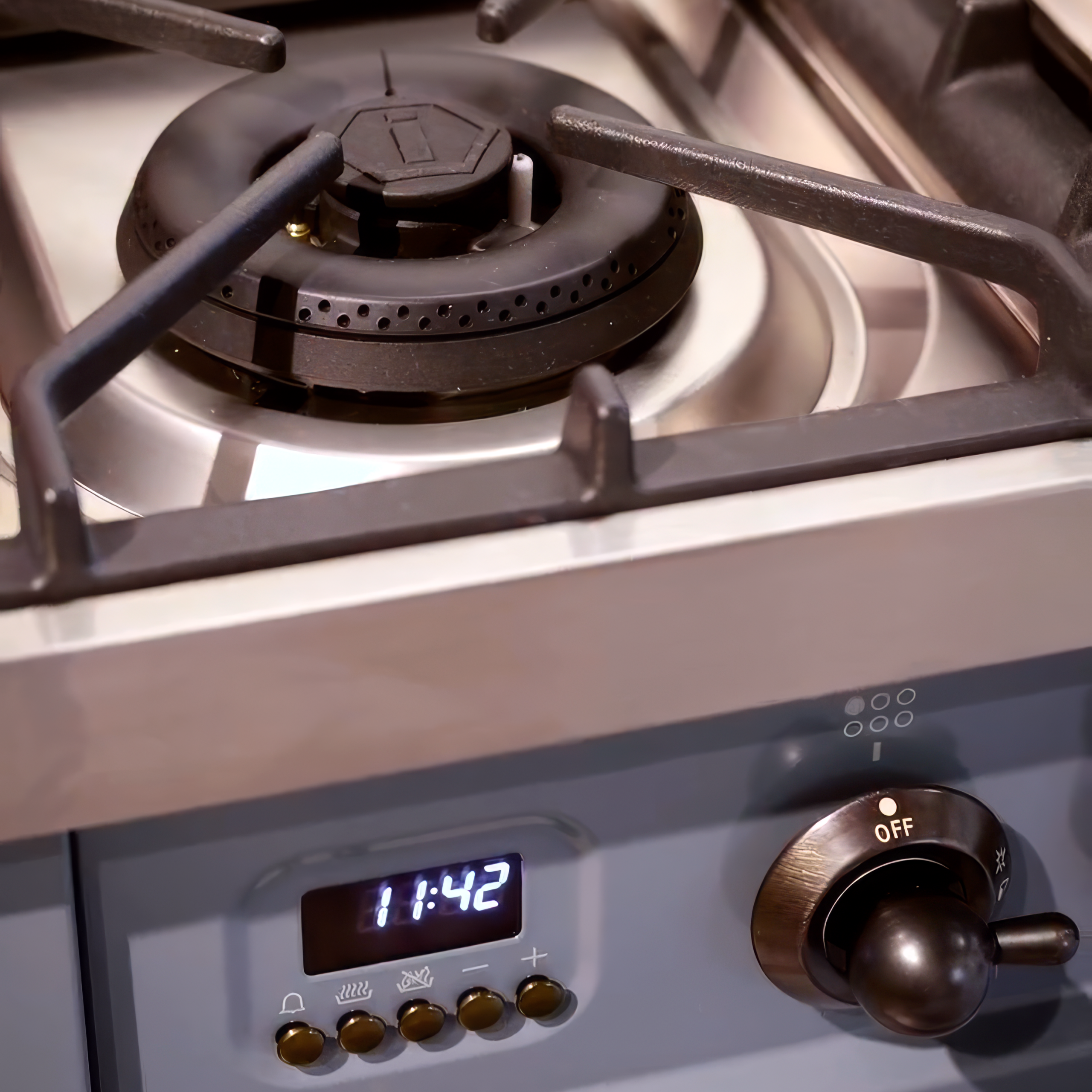

ILVE Nostalgie Burner Overview
The ILVE Nostalgie range offers powerful and precise gas burners, including standard and dual-ring configurations. This guide provides an overview of how to properly ignite and control your burners, as well as safety features to be aware of when cooking.
Understanding the burner operation is essential for performance, safety, and proper ignition.
Step-by-Step Replacement Process

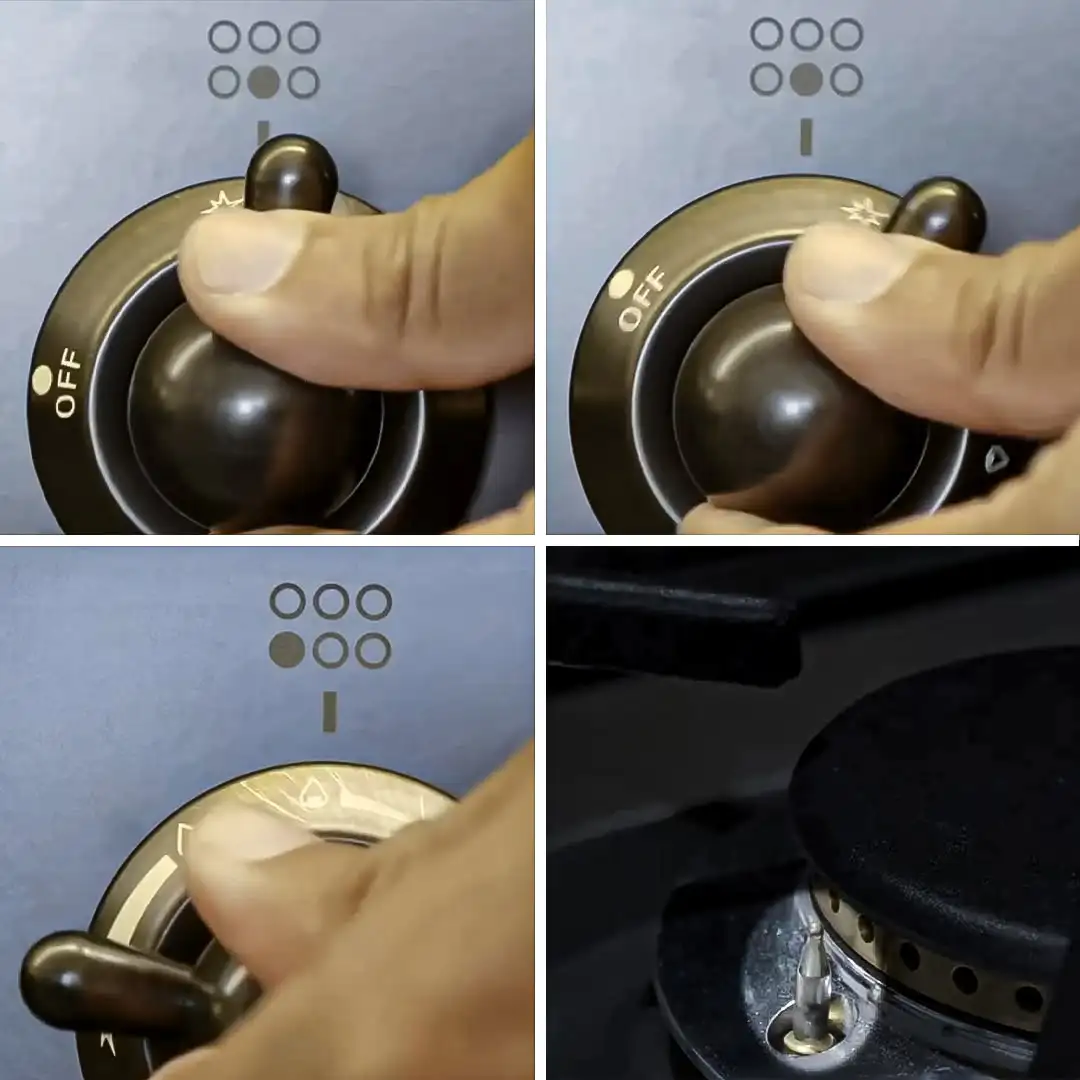

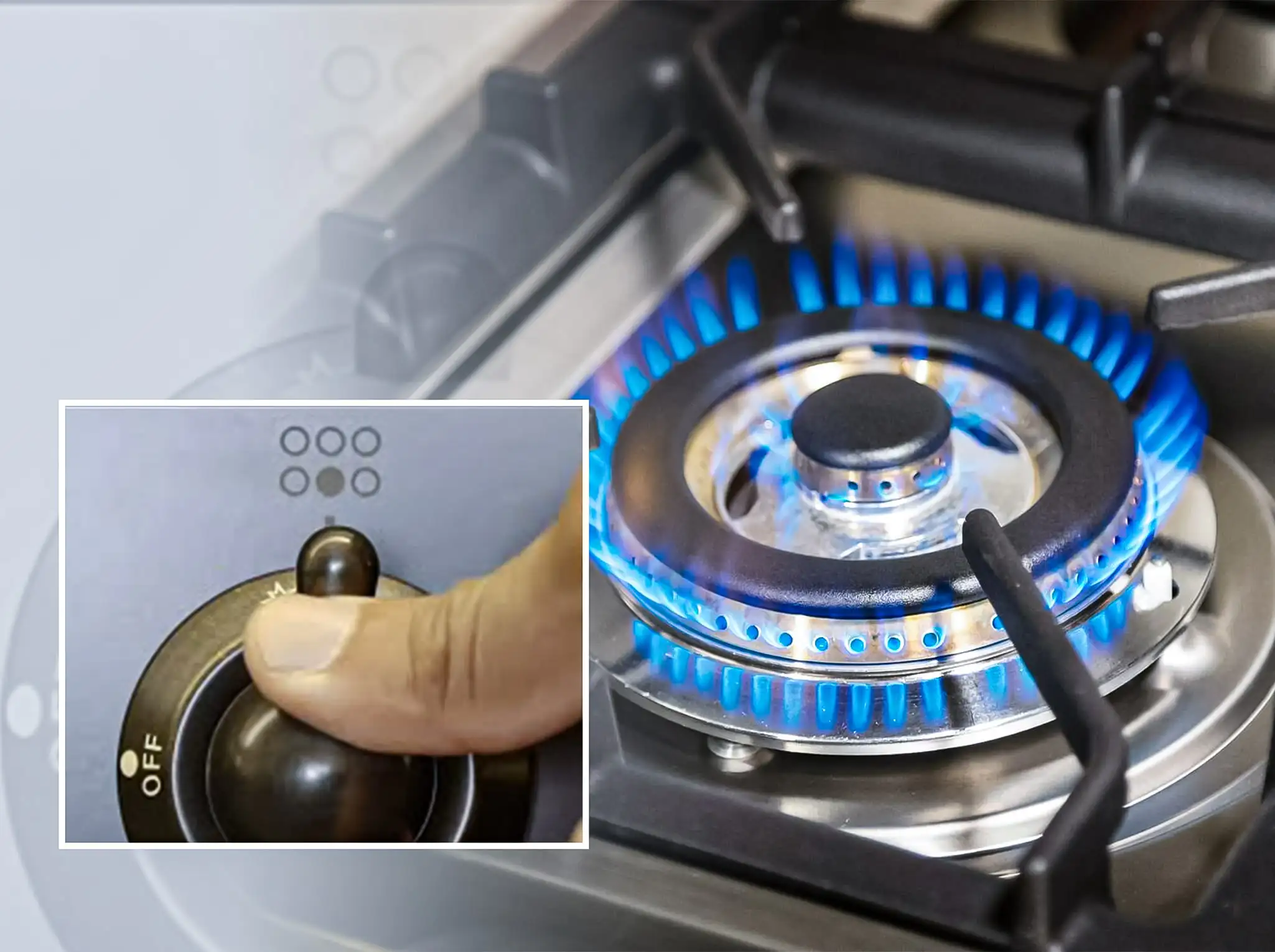

Standard Burner Ignition Instructions
- Press and Turn the Knob
- Press in the burner knob and turn it counterclockwise to the ignition position.
- Hold for Ignition
- Keep the knob pressed in for about 5 seconds to allow the burner to ignite.

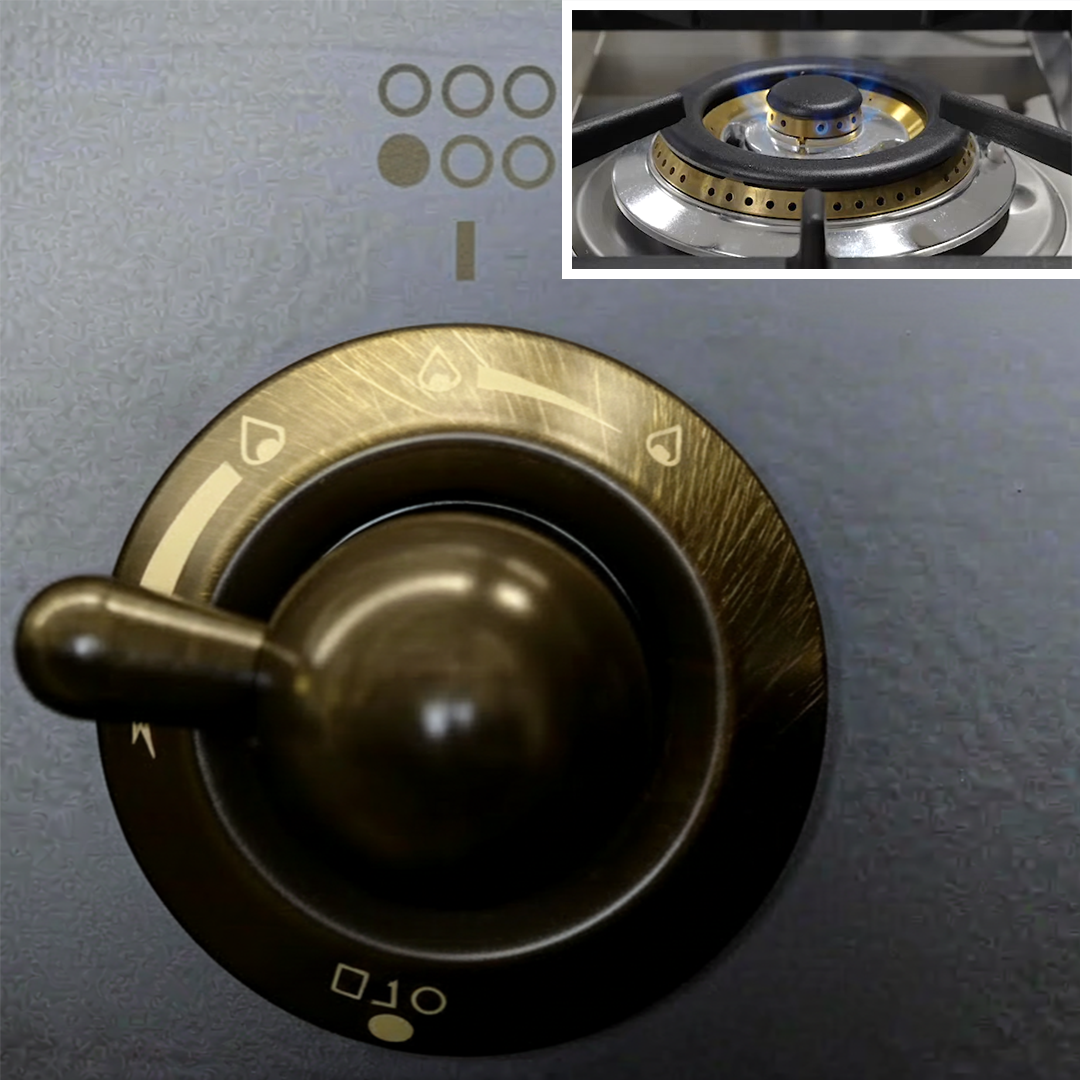

Dual-Ring Burner Operation

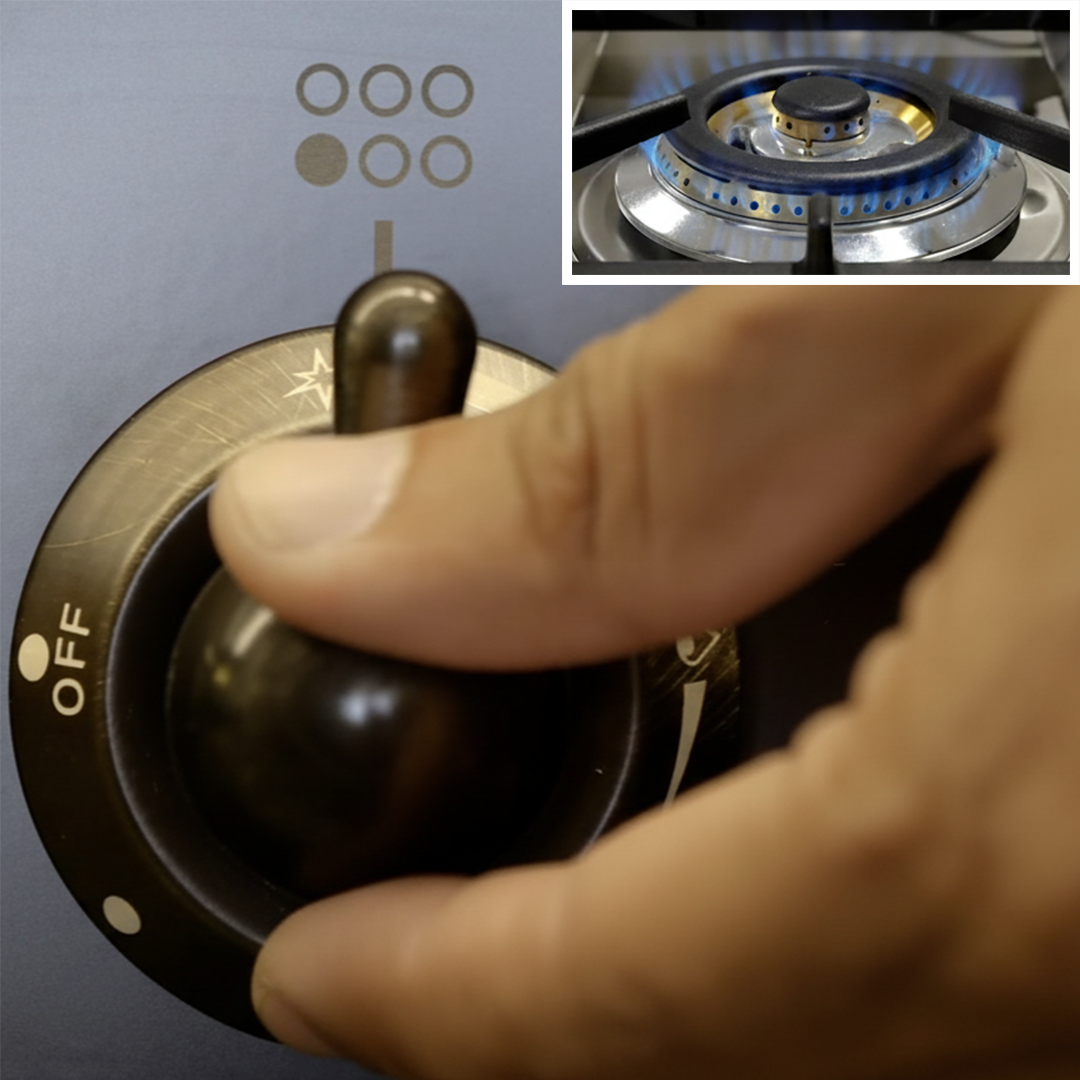

- Ignite Both Rings
- Press in the knob and turn it to the first position. Hold it there for 5 seconds to light both the internal and external rings.
- Switch Between Flame Zones
- Turn the knob to the second position to shut off the outer ring while keeping the inner ring lit.
- You can switch freely between using the full burner or just the internal ring depending on your cooking needs.

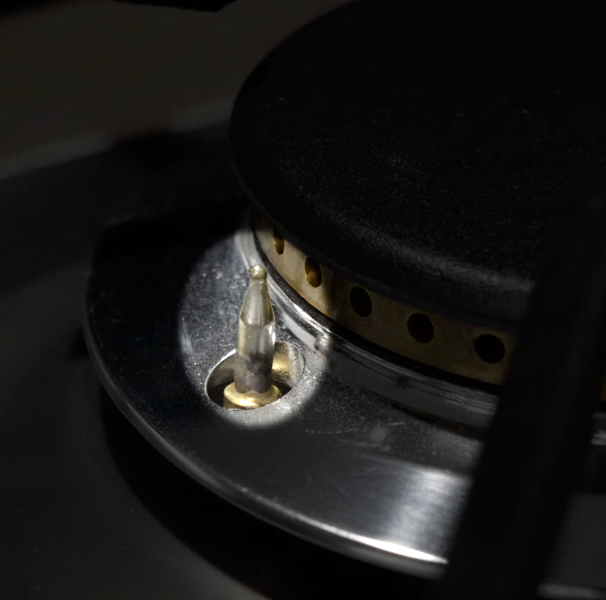

Built-In Safety Feature: Thermocouple-Controlled Valve
All ILVE burners are equipped with a thermocouple-controlled safety valve. If the flame goes out due to a blowout, liquid spill, or other issue, the gas will automatically shut off.

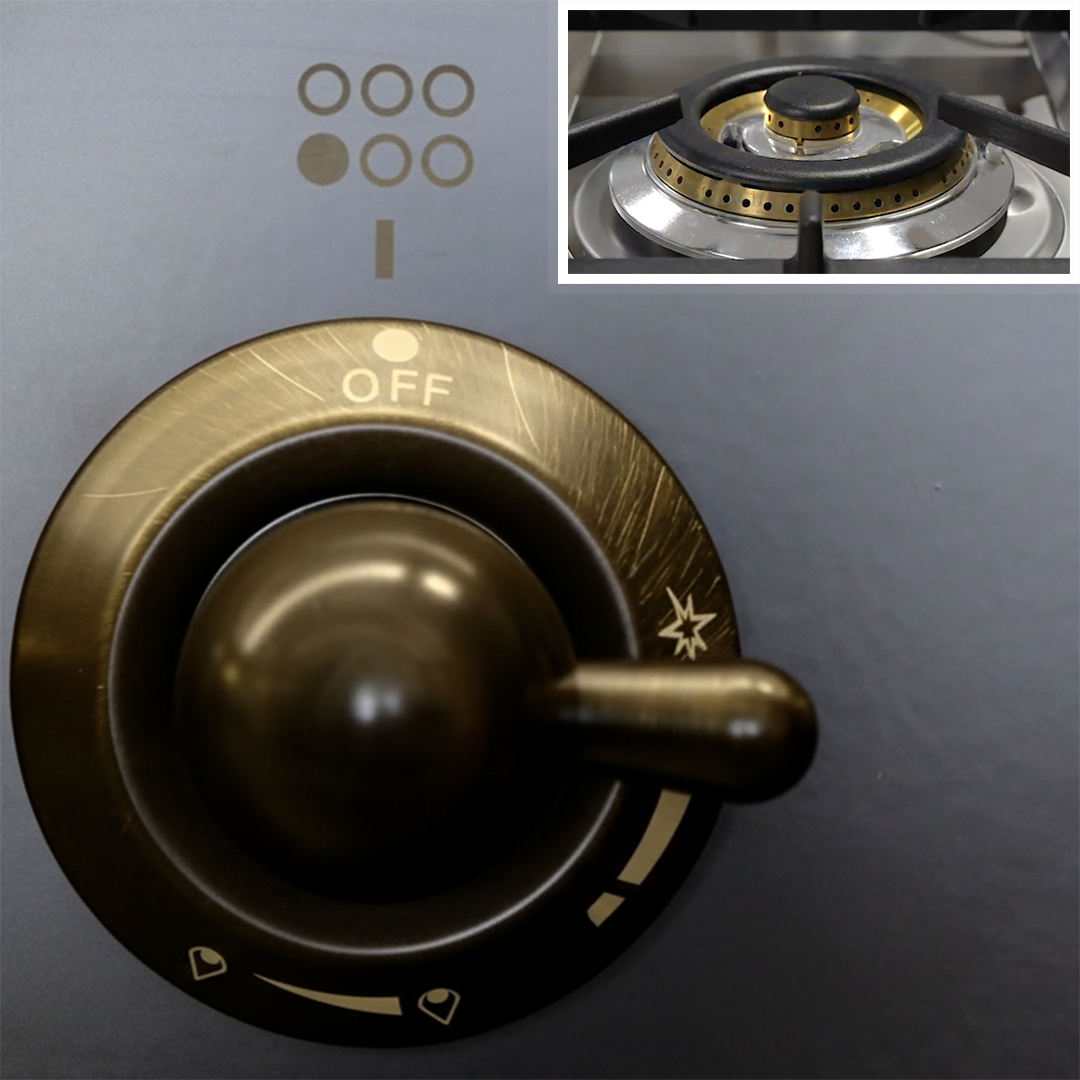

Important Note:
To bypass the safety valve during lighting, keep the knob held in for at least 5 seconds. This gives the thermocouple time to warm up and allow gas flow.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Range online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
