How to Replace or Install Sliding Guides
Sliding guides make it easier and safer to pull out oven racks, especially when handling hot dishes. If you need to replace worn guides or install them for the first time, this quick guide will walk you through the process step-by-step.
Sliding guides make it easier and safer to pull out oven racks, especially when handling hot dishes. If you need to replace worn guides or install them for the first time, this quick guide will walk you through the process step-by-step.
Tools Required
- Flathead screwdriver
- New ILVE sliding guide set
- Clean and stable workspace

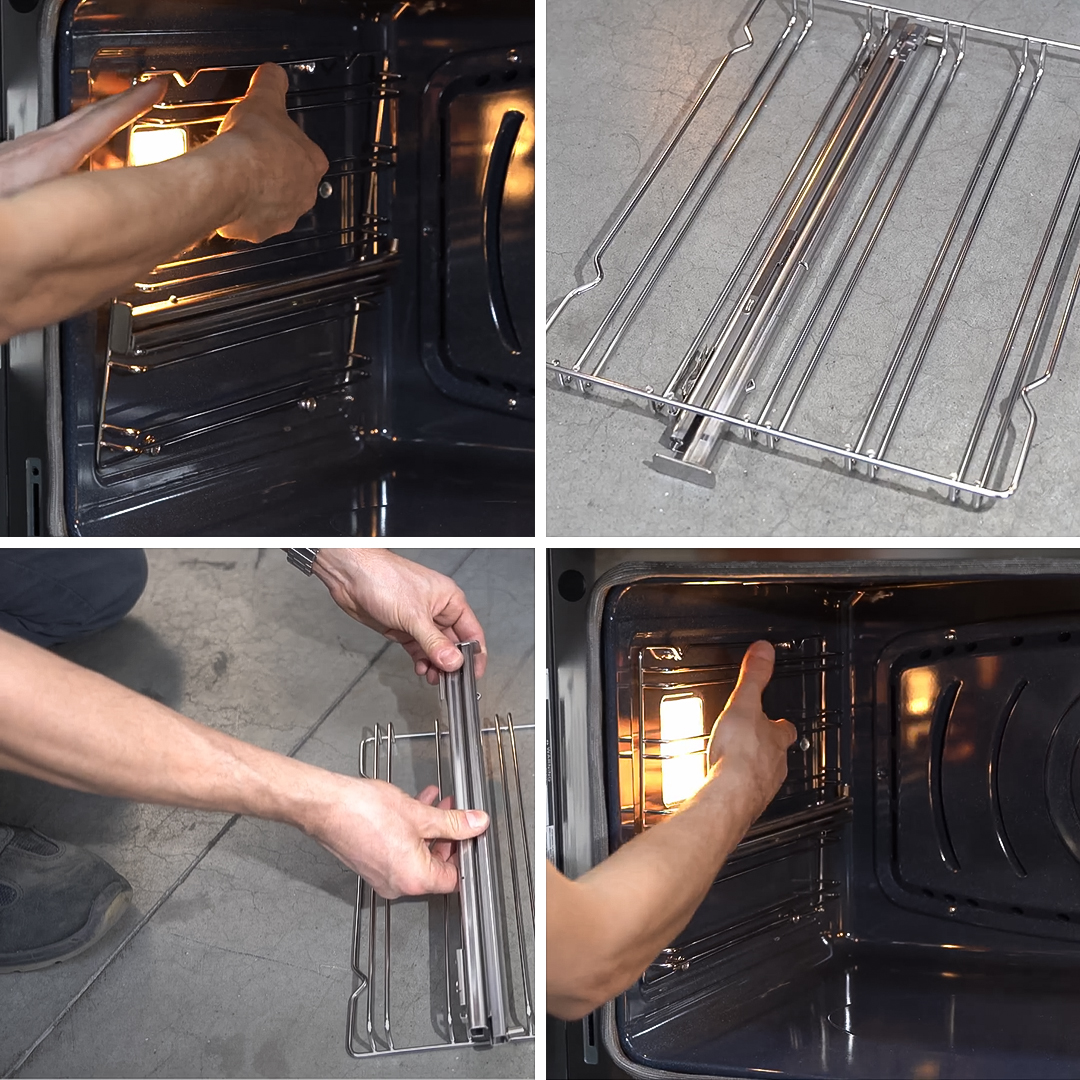

Step-by-Step Replacement Process

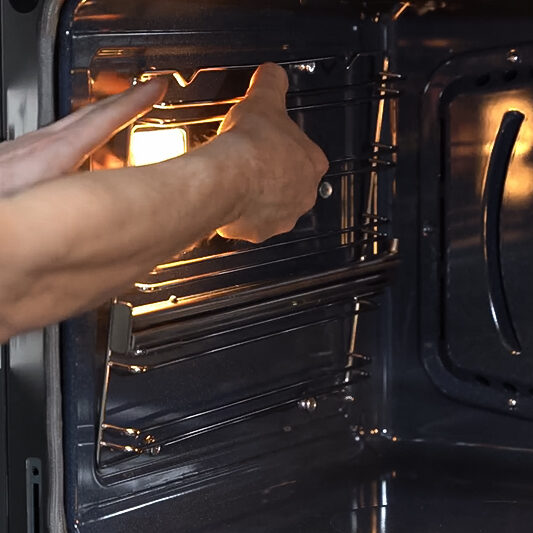

- Detach the Side Racks
- Press inward and gently pull the side racks out to remove them from the oven walls.

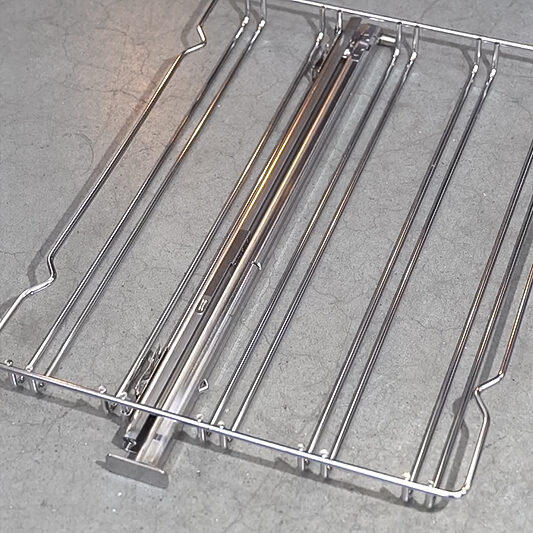

- Remove the Old Sliding Guides

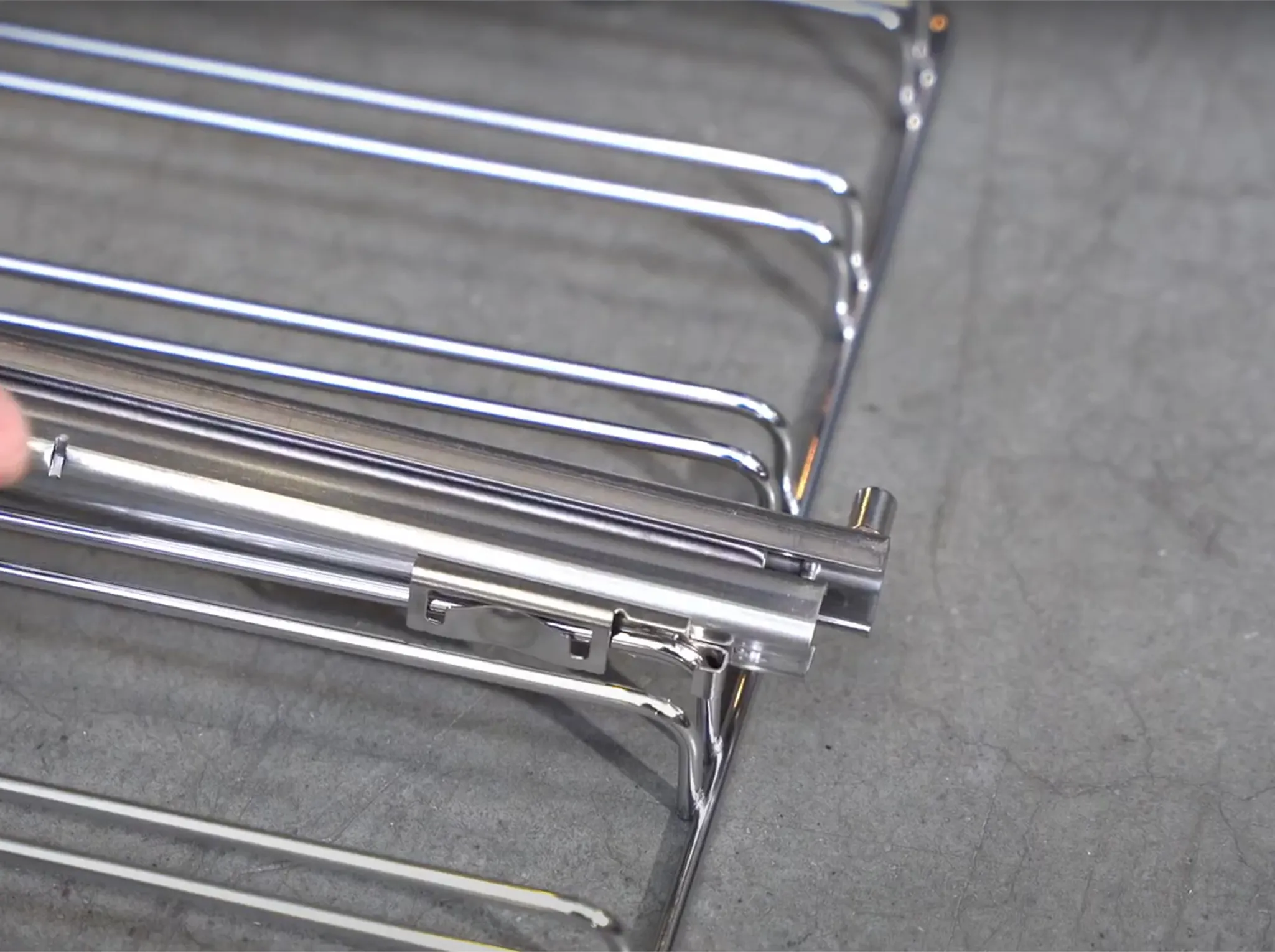

- Using a flathead screwdriver, carefully release the clip mechanism that holds the existing sliding guides in place. Slide them out completely.

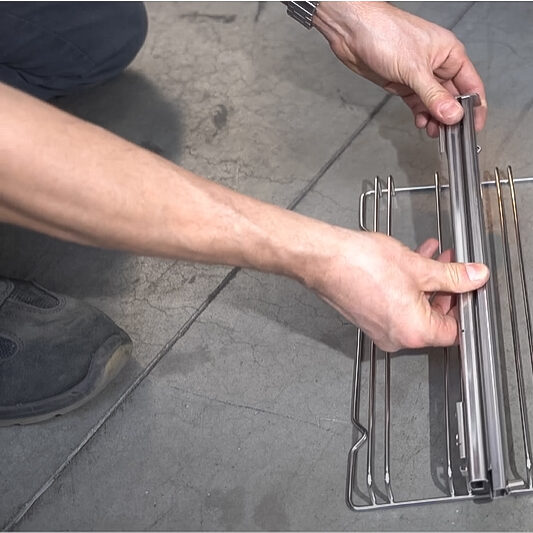

- Install the New Sliding Guides
- Position the new guides into the designated slots along the oven sidewalls. Push firmly until you hear or feel them click into place.

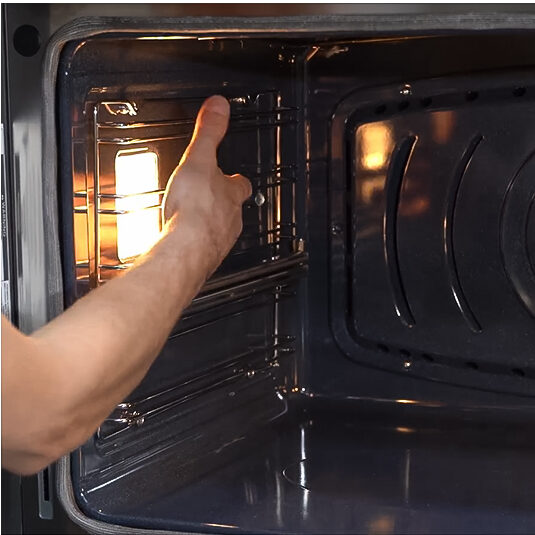

- Reattach the Side Racks
- Align the side racks properly and press them back into position, ensuring a secure fit.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Panoramagic online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
