How to Unbox and Install ILVE Panoramagic Range
The ILVE Panoramagic Range is a striking centerpiece in any kitchen, merging bold, architectural design with powerful culinary performance. This guide walks you through the correct steps to safely unbox and install your new Panoramagic range with confidence and care.
The ILVE Panoramagic Range is a striking centerpiece in any kitchen, merging bold, architectural design with powerful culinary performance. This guide walks you through the correct steps to safely unbox and install your new Panoramagic range with confidence and care.
Whether you’re a homeowner, designer, or installer, following these steps will ensure a smooth, damage-free setup of your premium appliance.
Tools Required
- Crowbar
- Screwdriver
- Pliers
- Two people for lifting
- Cardboard or protective padding
Step-by-Step Replacement Process
- Loosen the Wooden Crate
- Use a crowbar to carefully loosen the crate surrounding the range.
- Lift and Remove the Crate
- With assistance, lift and remove the wooden crate to expose the appliance.

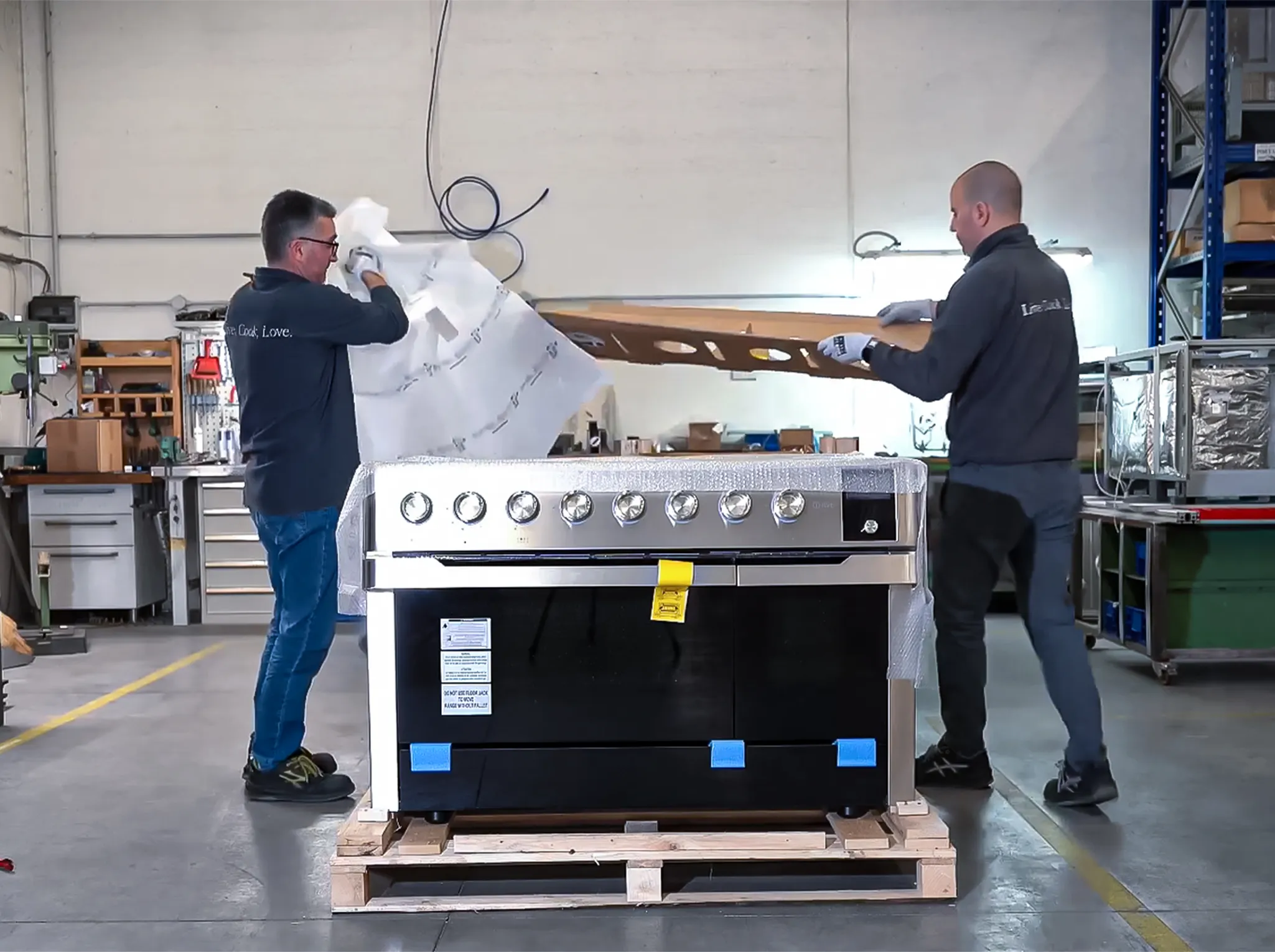

- Remove the Cardboard
- Peel away the outer cardboard packaging completely.
- Take Off the Plastic Wrapping
- Remove all protective plastic wrapping from the range body.

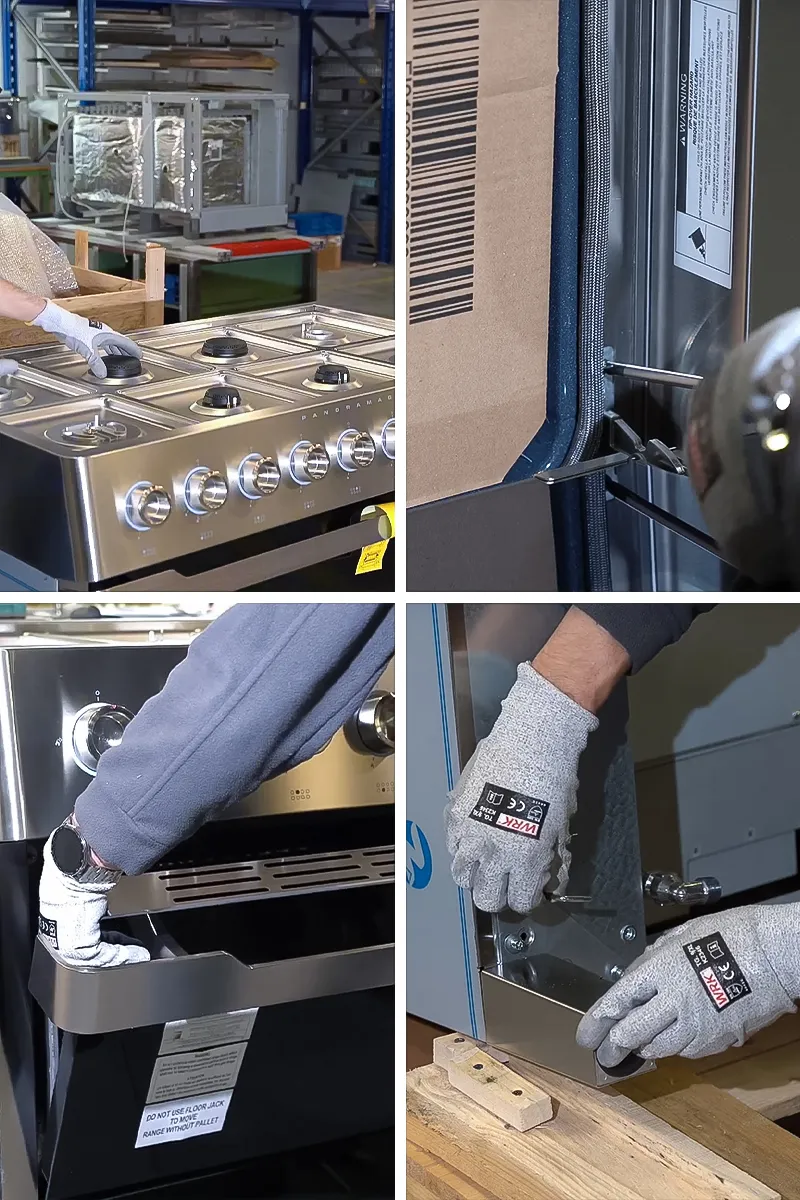

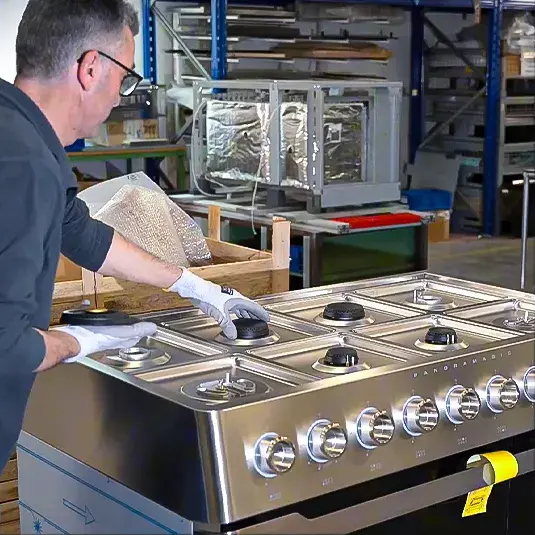

- Disassemble the Grates and Burner Caps
- Remove the cooktop grates and burner caps to prevent shifting or damage during handling.

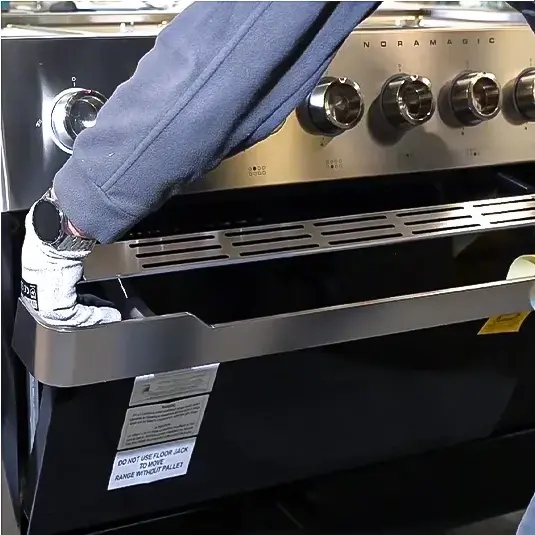

- Remove the Drawer
- Pull out the bottom drawer and place it aside.

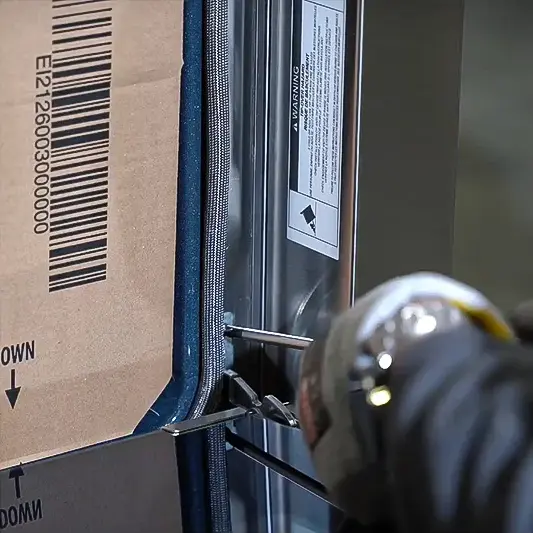

- Detach the Oven Doors
- Use a screwdriver or pliers to carefully detach the oven doors. This reduces weight for safer lifting.
- Remove All Accessories from Inside the Ovens
- Take out all racks, trays, and accessories from both ovens.
- Important: Ensure the unit is completely empty before proceeding.
- Place Packaging Cardboard for Protection
- Use a piece of the original cardboard to protect the rear or floor surfaces when handling or rotating the range.
- Check for a Proper Grip
- Ensure you have a firm and secure grip before attempting to lift or reposition the unit.
- Rotate the Unit with Assistance
- With a second person, gently rotate the range onto its side or back to access the bottom panel.
- Remove Temporary Supports
- Take off any temporary transport supports or feet attached to the base.

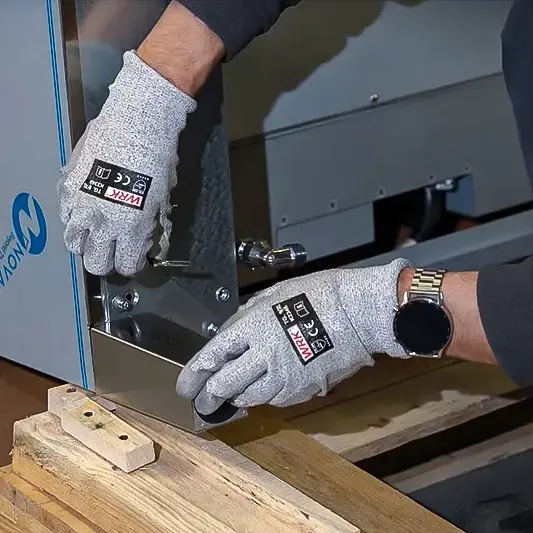

- Install the Adjustable Feet
- Remove the legs from the kit and install them using the provided instructions.
- Tighten the Feet Securely
- Ensure each leg is properly tightened and stable for safe placement.
- Remove the Pallet
- Carefully lift the unit and slide out the wooden pallet from beneath.
- Lift Carefully to Avoid Damage
- Avoid placing full weight on the legs when lifting to prevent bending or damage.
- Position the Unit in Place
-
- Move the range into its final kitchen position with care.
- Reattach All Components
- Reinstall the oven doors, drawer, burner caps, and grates to complete the setup.
Final Recommendations
- Refer to the full ILVE installation manual for clearance requirements and connection guidelines.
- Always hire a licensed professional for gas and electrical installations.
- Register your ILVE Panoramagic online to activate your warranty and receive product support.
Need further assistance? Visit us.ilve.com or contact our support team.
